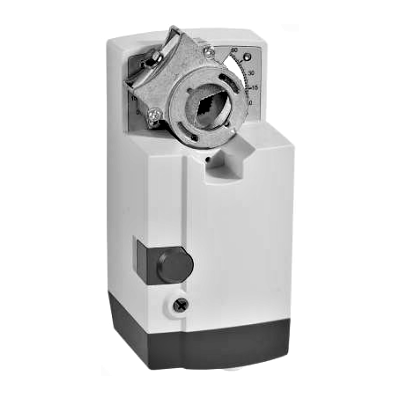

Honeywell MN6120A1200 Floating Actuator 2-Position Non-Spring Return 24V

Two position, floating actuator with 175 lb-in non-spring return and 24 Vac. These direct-coupled damper actuators provide two-position and floating control for: rotary valves, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 50 sq.ft. (20 Nm / 175 lb-in) or 85 sq. ft. (34 Nm / 300 lb-in) (seal-less damper blades; air friction-dependent). New self-centering shaft adapter. Access cover to facilitate connectivity Declutch for manual adjustment. Mechanical end limits (MN6120 only). Field-installable auxiliary switches. Rotation direction selectable by switch. Mountable in any orientation (no IP54 if upside down). Mechanical position indicator.

Features:
