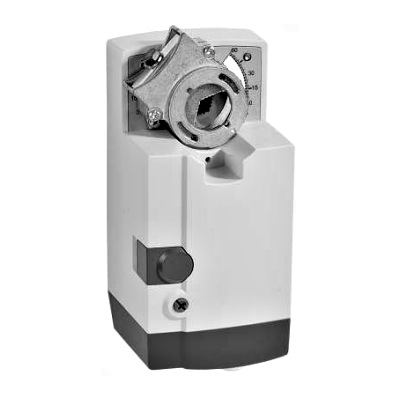

Honeywell MN7234A2008 Floating Actuator Non-Spring Return 24V

Name: Honeywell MN7234A2008 Floating Actuator Non-Spring Return 24V
Brand: Honeywell
SKU: MN7234A2008
Price: 582.94 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell MN7234A2008 Floating Actuator Non-Spring Return 24V

SKU: MN7234A2008

UPC: 0852670471

Brand:

Rating:

Quantity	Price	Stock
40 Usually Ships 1-2 Weeks	$582.94 /ea	40

Buy in Bulk & Save

Quantity	Price
5+	$522.36 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell MN7234A2008 Floating Actuator Non-Spring Return 24V

These direct-coupled damper actuators provide modulating and floating control for: rotary valves, air handling units, ventilation flaps, louvers, and reliable control for air damper applications with up to 50 sq.ft. (20 Nm / 175 lb-in) or 85 sq. ft. (34 Nm / 300 lb-in) (seal-less damper blades; air friction-dependent).

Features:

Patented self-centering shaft adapter.
Access cover to facilitate connectivity.
Declutch for manual adjustment.
Mechanical end limits.
Field-installable auxiliary switches.
Rotation direction selectable by switch.
Mountable in any orientation (no IP54 if upside down). Mechanical position indicator.

Dimensions	8.78 in high x 3.62 in wide x 3.15 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac Â±20%; 24 Vdc
Power Consumption	Driving-- 8 VA, 6 W
Ambient Temperature Range	-5 F to +140 F (-20 C to +60 C)

Download Product Information:

Honeywell MN7234A2008 Floating Actuator Non-Spring Return Damper Actuator Data Sheet
