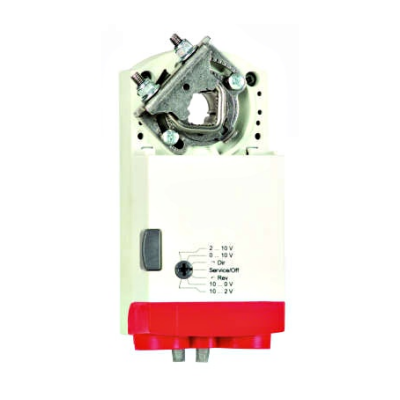

Images for general purposes only. Actual may be different than depicted.

Honeywell MN7505A2209 Floating Actuator 24Vac

SKU: MN7505A2209

Brand:

Rating:

Quantity	Price	Stock
5 Usually Ships 3 - 4 Weeks	$291.46 /ea	5

Buy in Bulk & Save

Quantity	Price
5+	$261.18 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell MN7505A2209 Floating Actuator 24Vac

This non-spring return direct-coupled damper actuator provides modulating and floating/2-position control for: air dampers, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq. ft./ 44lb.-in. (5 Nm) and 20 sq. ft./88 lb.-in. (10 Nm) (seal-less damper blades; air friction-dependent).

Features:

Declutch for manual adjustment
Adjustable mechanical end limits
Removable access cover for direct wiring
Mountable in any orientation
Function selection switch for selecting modulating or floating/2-position control

Dimensions	5.23 in high x 2.60 in wide x 2.44 in deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24 Vac +20%, -15%; 24 Vdc
Power Consumption	Driving-- 5 VA
Ambient Temperature Range	-5 F to +140 F (-20 C to +60 C)

Download Product Information:

Honeywell MN7505A2209 Floating Actuator Data Sheet

Honeywell MN7505A2209 Floating Actuator Installation Instructions
