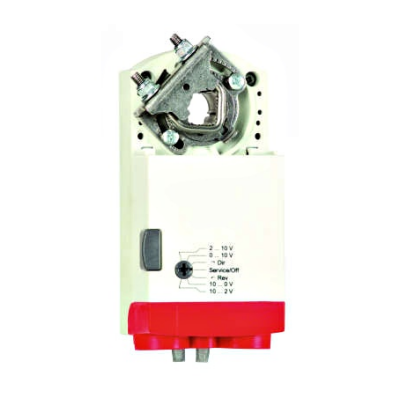

Honeywell MN7510A2001 Floating Actuator 24Vac
This non-spring return direct-coupled damper actuator provides modulating and floating/2-position control for: air dampers, VAV units, air handlers, ventilation flaps, louvers, and reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 N·m) and 20 sq ft (1.9 sq m) / 88 lb-in. (10 N·m) (seal-less damper blades; air friction- dependent).
Features:
| Dimensions | 5.23 in high x 2.60 in wide x 2.44 in deep |
|---|---|
| Supply Voltage | 24 Vac +20%, -15%; 24 Vdc |
| Frequency | 50 Hz; 60 Hz |
| Power Consumption | Driving-- 5 VA |
| Ambient Temperature Range | -5 F to +140 F (-20 C to +60 C) |
Download Product Information:
Honeywell MN7510A2001 Floating Actuator Data Sheet
Honeywell MN7510A2001 Floating Actuator Installation Instructions
