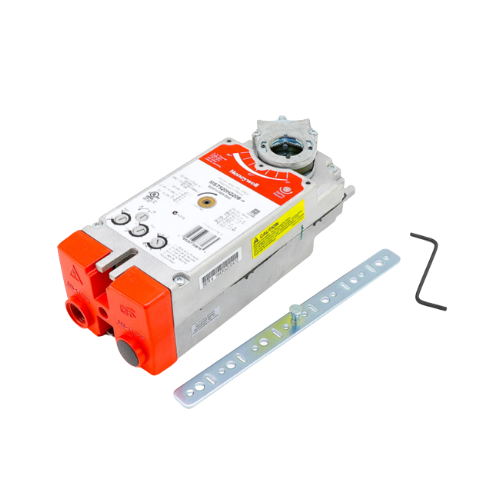

The MS7520H2208 is a spring return direct coupled actuator designed for Honeywell HVAC applications requiring fail-safe operation.  It operates at 24V AC with multiple control signal options, including 0/2-10 VDC, 4-20mA with a 500-ohm resistor, on/off, SPDT, and floating control.  The actuator delivers 175 lb-in torque with a 95° ± 3° rotational stroke, ensuring precise damper or valve positioning.  It features a nominal driving time of 90 seconds and a maximum spring return time of 20 seconds.

Engineered for versatility, this actuator is compatible with 3/8" to 1.06" round or 3/8" to 11/16" square damper shafts using a self-centering clamping adapter.  Its robust metal housing includes built-in mechanical end limits, a shaft position indicator, and a manual operation crank for added convenience.  It is NEMA 2 rated, suitable for demanding environments with an operating temperature range of -40°F to 140°F and humidity tolerance of 5% to 95% RH non-condensing.

Ideal for controlling volume dampers, quarter-turn rotary valves, and linear stroke valves in Honeywell HVAC systems, the MS7520H2208 provides reliable performance with electronic stall protection.  Installation is simplified with an access cover for easy wiring, and the spring return direction is field-selectable for adaptability in various setups.  The 32006306-001 resistor kit accessory, 50006427-001 anti-rotation bracket, and 32004254-002 shaft adapter replacement parts are also available.
