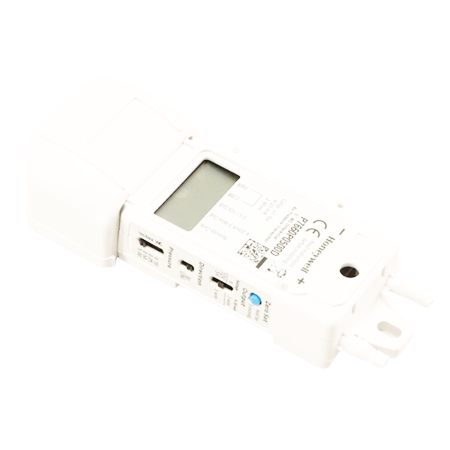

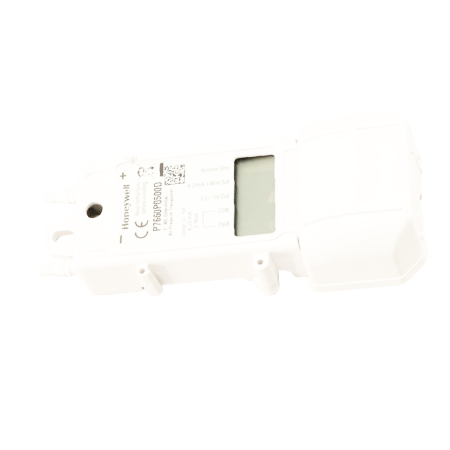

The P7660P0500D is a universal pressure sensor that has a 0.1/0.25/2.5/5" W.C. pressure range. It has -4°F to 185°F (-20°C to 85°C) operating temperature and is compatible with dry, oil-free air and nitrogen. It features a precision-calibrated MEMS silicon piezorestive sensor that provides accurate and reliable operation.
The universal pressure sensor is ideal for building zone pressure, filter measurement, and static duct applications. It has a static probe that can be integrated with the unit or mounted remotely, allowing for easy use in duct, filter, and remote probe applications. The sensor also has four pressure range options that you can select, uni/bi-directional modes, and various output types, including 4-20 mA and 0-10 Vdc.
The unit is easy to install with its flexible panel design and dual orientation DIN rail mount. The LCD display shows pressure readings in PSID or kPa, and the sensor includes a zero calibration push-button for a simplified setup. The P7600PROBE duct mount pressure probe accessory is also available.
The P7660P0500D directly replaces part number P7640A1000 Panel Mount Differential Pressure Transmitter.
| Pressure Range | 0.1/0.25/2.5/5 W.C. |
|---|---|
| Operating Temperature Range | -4 to 185°F (-20 to 85°C) |
| Compensated Temperature Range | 32 to 122 °F (0 to 50 °C) |
| Media | Dry, oil-free air. Nitrogen |
| Sensor Type | Precision Calibrated: MEMS silicon piezorestive |
| Enclosure Material | ABS |
| Power Supply | 12-30 Vdc/24 Vac1, 30 mA maximum |
| Output | 3-wire 0-5 V/10V, 4-20 mA loop powered, 3-wire 4-20 mA (selectable) |
| Pressure Connection | 0.250" or 0.375" |
| Approvals | CE-marked |
