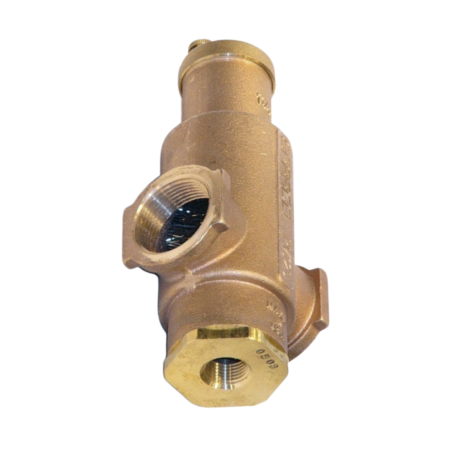

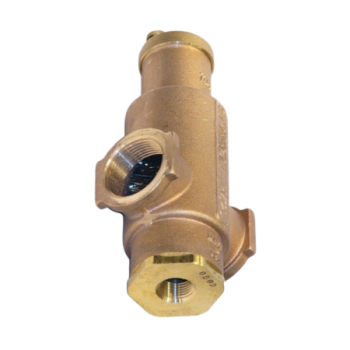

The Honeywell PV125 is a SuperVent air eliminator made of bronze with a 1-1/4” NPT connection. This device has a 125 psi maximum pressure and a 38 Cv flow capacity.
The air eliminator automatically eliminates air and micro-bubbles from the system by purging air through a no-clog vent to control dirt or debris without bleeding.
The PV125 is compatible with residential and commercial closed-loop hydronic heating or chilled water systems. It has a 360° adjustable collar ring for flexible installation.
| Body Material | Bronze |
|---|---|
| Flow Capacity | 38 Cv |
| Maximum Operating Temperature | 115°C (240°F) |
| Connection Size | 1-1/4” NPT (Bottom Inlet) |
| Application | Residential or Commercial |
| Maximum Operating Pressure | 125 psi (862 kPa) |
| Maximum Diameter | 64 mm |
| Flow Direction | Bi-Directional |
| Concentrator Material | Stainless Steel |
