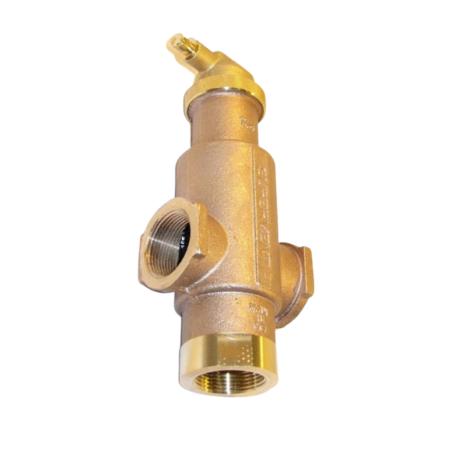

The Honeywell PVU125 is a SuperVent air eliminator with a 1-1/4” NPT connection that can hold 125 psi. This device has a bronze body and a stainless steel concentrator.
The air eliminator automatically eliminates air and micro-bubbles from the system by purging air through a no-clog vent to control dirt or debris without bleeding.
The PVU125 is suitable for residential and commercial closed-loop hydronic heating or chilled water systems. It has a 360° adjustable collar ring for flexible installation.

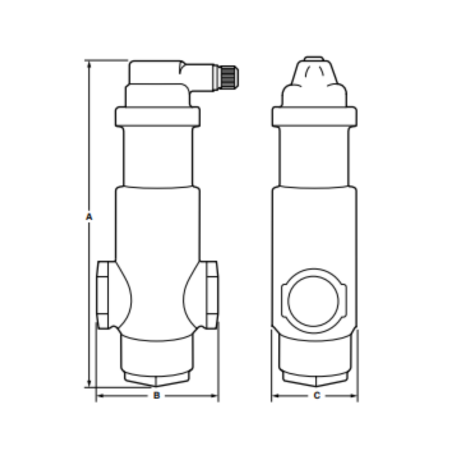

Note: PVU Universal models bottom connections are the same as the inlet and outlet for vertical riser application.
| Maximum Operating Temperature | 115°C (240°F) |
|---|---|
| Connection Size | 1-1/4” NPT (Bottom Inlet) |
| Application | Residential or Commercial |
| Maximum Diameter | 64 mm |
| Maximum Operating Pressure | 125 psi (862 kPa) |
| Flow Capacity | 10.5 Cv |
| Body Material | Bronze |
| Flow Direction | Bi-Directional |
| Concentrator Material | Stainless Steel |
