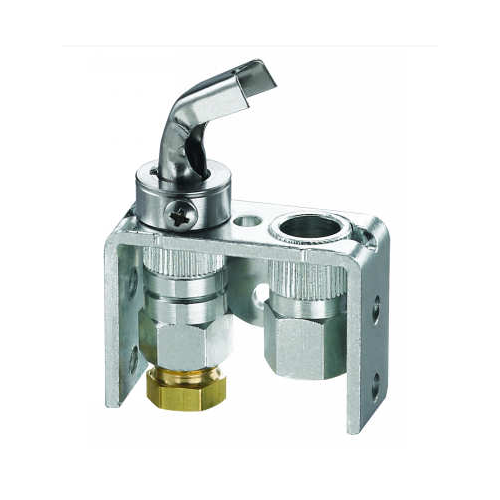

The Honeywell-Resideo Q314U1001 Universal Pilot Burner is a versatile solution for standing pilot and main burner ignition applications.

Compatible with Natural Gas and LP systems, it features a single-tip design with an adjustable hood that directs the flame left, right, or center for easier installation and service flexibility.

Designed to simplify field installation, the Q314U1001 includes Natural Gas and LP orifices, standard and low-BTU hoods, an adjustable tip, and 1/4-inch and 1/8-inch compression fittings.  It is compatible with Q309, Q340, and Q390 thermocouples and Q313 thermopiles, making it a practical choice for a wide range of gas-fired heating equipment. Its universal configuration helps streamline service work and reduce installation complexity.



Frequently Asked Questions


• What is the Honeywell-Resideo Q314U1001 used for?

The Q314U1001 is a universal standing pilot burner designed for pilot and main burner ignition applications in compatible gas-fired heating equipment.

• Is the Q314U1001 compatible with Natural Gas and LP?

Yes. The kit is designed for both Natural Gas and LP applications and includes the appropriate orifices for each gas type.

• Can the pilot flame direction be adjusted?

Yes.  The adjustable hood allows the pilot flame to be directed left, right, or center for greater installation flexibility.

• Which thermocouples are compatible with the Q314U1001?

The Q314U1001 is compatible with Honeywell-Resideo Q309, Q340, and Q390 thermocouples.

• Is the Q314U1001 compatible with thermopiles?

Yes.  It is compatible with the Honeywell-Resideo Q313 thermopile.

• What components are included with the Q314U1001?

The kit includes Natural Gas and LP orifices, standard and low-BTU hoods, an adjustable tip, and 1/4-inch and 1/8-inch compression fittings.

• Is the Q314U1001 suitable as a universal replacement pilot burner?

Its universal configuration, multiple fittings, gas orifices, and adjustable flame position make it suitable for a broad range of compatible standing pilot service applications.

• What are the main benefits of the Honeywell-Resideo Q314U1001?

Key benefits include Natural Gas and LP compatibility, adjustable flame positioning, multiple connection options, and broad thermocouple and thermopile compatibility for streamlined field service.
