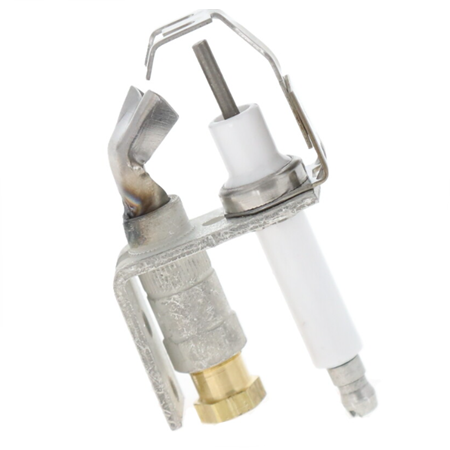

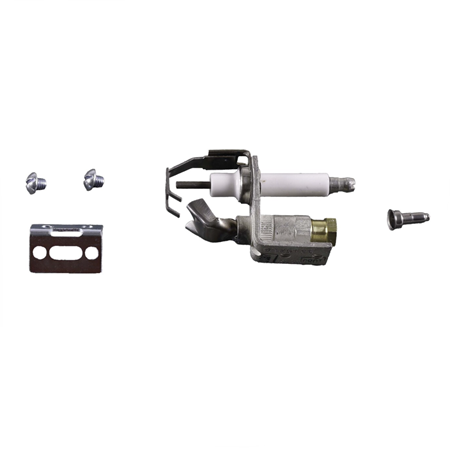

The Honeywell Q345A1313 is an intermittent pilot burner kit for Series S86, S860, S8610, and S8670 Pilot Systems. The kit includes a flame, sensor, ground strap, and an igniter.
The unit is a non-primary aerated type of pilot burner applicable for a system that uses natural gas. This features a ceramic-insulated kanthal flame rod as the source of ignition.
Provides a mounting bracket type B to easily install the pilot burner on the system. It has a fitting size of 1/4" compression and 0.018" (BCR-18). We also offer a 0.01" BBR-10 orifice for liquid propane.
The Q345A1313 is a CSA-approved burner kit.
| Size | 2-1/16" W x 3/4" Depth |
|---|---|
| Fitting Length | 0.78" |
| Fitting Size | 1/4" |
| Orifice Size | 0.018" |
| Fuel Type | Natural Gas |
| Tip Style | Target |
| Direction of Front Tip | Left |
| Mounting | Bracket Style B |
| Approval | CSA |
