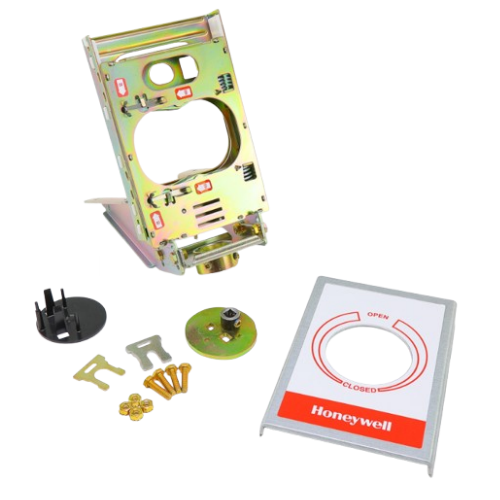

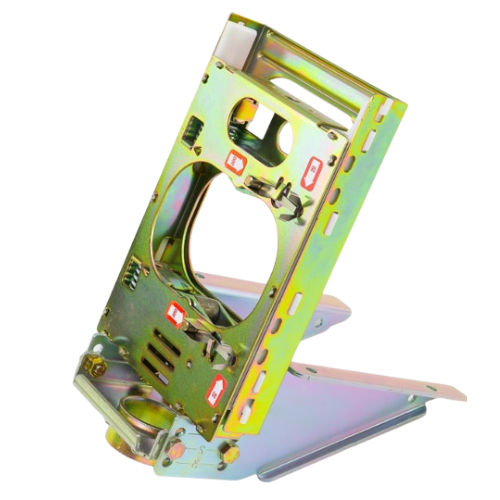

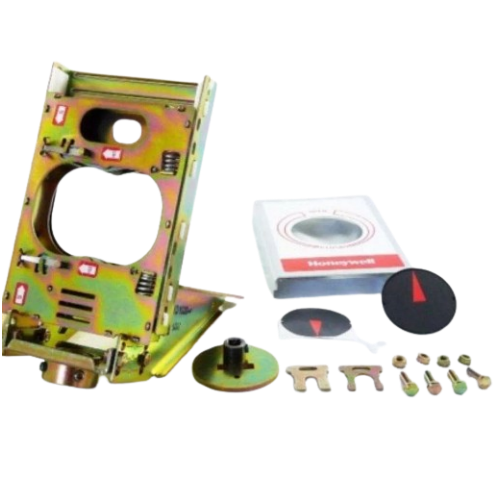

Honeywell Q5001D1000 Valve Linkage

Name: Honeywell Q5001D1000 Valve Linkage
Brand: Honeywell
SKU: Q5001D1000
Price: 1058.25 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell Q5001D1000 Valve Linkage

SKU: Q5001D1000

UPC: 0852670696 Tariff HS Code: 8483608000

Brand:

Rating:

Quantity	Price	Stock
28 Usually Ships 1-2 Weeks	$1,058.25 /ea	28

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell Q5001D1000 Valve Linkage

The Q5001 Valve Linkage connects a Modutrol Motor to a 2- or 3-way valve. It is used primarily on steam and water valves such as the V5011 or V5013.

Features:

Q5001 Valve Linkage is applicable to 2-Way or 3-Way valves in modulating or two-position service.
Linkage requires no adjustment when used with Honeywell valves and Modutrol IV™ Motors.
Q5001 Valve Linkage replaces Q601 and Q618 Valve Linkages.
Linkage mounts directly to the valve bonnet; motor mounts to linkage bracket.
Easy-to-read position indicator.
Valve stem lift height cam selectable.
Overtravel permits tight close-off without excessive motor strain.
Available brackets make linkages adaptable to many valve bodies.
Models available with 80 lb, 160 lb, and 320 lb stem force.
Reversible cams on the Q5001 allow field selection of normally open or normally closed valve operation.
All models have anti-spin clips.

Ambient Temperature Range	-40 F to +150 F (-40 C to +66 C)
Mounting	Linkage mounts directly to the valve bonnet; motor mounts on linkage bracket.
Bonnet Size	1 3/8 in.
Stroke	3/4 in.
Stem Force Rating	80 or 160 lbf (356 N or 712 N)

Download Product Information:

Honeywell Q5001 Valve Linkage Data Sheet
