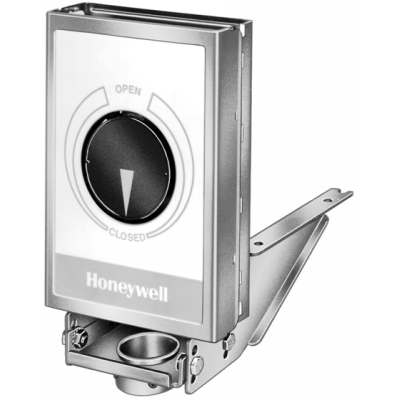

Honeywell Q5001D1026 Valve Linkage for Modutrol IV Motors

The Q5001 Valve Linkage connects a Modutrol Motor to a 2- or 3-way valve. It is used primarily on steam and water valves such as the V5011 or V5013.

Features:

• Q5001 Valve Linkage is applicable to 2-Way or 3-Way valves in modulating or two-position service.
• Linkage requires no adjustment when used with Honeywell valves and Modutrol IV™ Motors.
• Q5001 Valve Linkage replaces Q601 and Q618 Valve Linkages.
• Linkage mounts directly to the valve bonnet; motor mounts to linkage bracket.
• Easy-to-read position indicator.
• Valve stem lift height cam selectable.
• Overtravel permits tight close-off without excessive motor strain.
• Available brackets make linkages adaptable to many valve bodies.
• Models available with 80 lb, 160 lb, and 320 lb stem force.
• Reversible cams on the Q5001 allow field selection of normally open or normally closed valve operation.
• All models have anti-spin clips.
