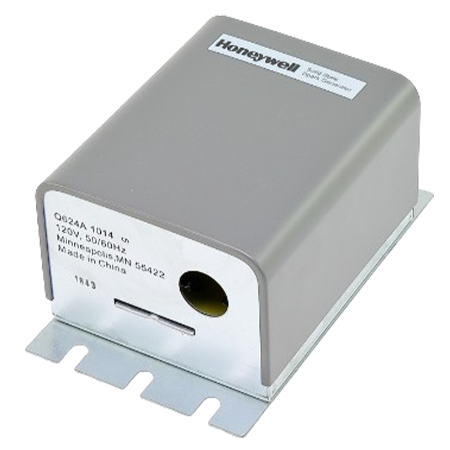

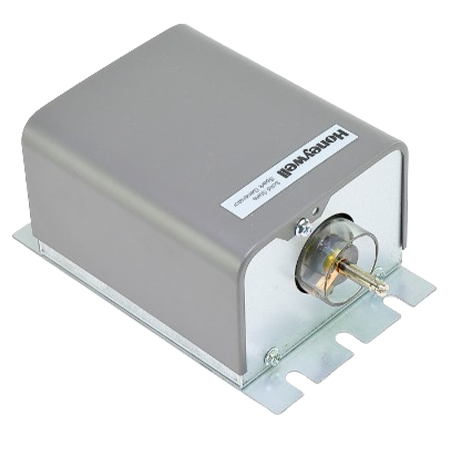

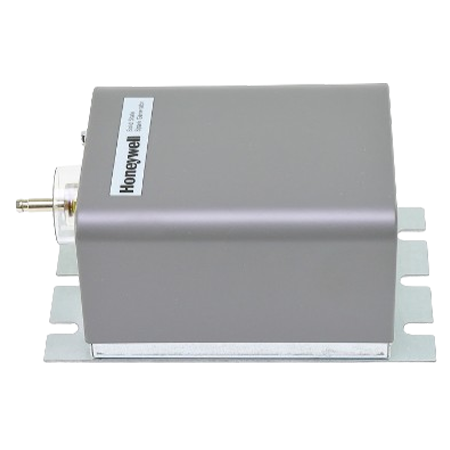

Honeywell Q624A1014 Solid State Spark Generator

Honeywell Q624A1014 Solid State Spark Generator
Images for general purposes only. Actual may be different than depicted.
Honeywell Q624A1014 Solid State Spark Generator Honeywell Q624A1014 Solid State Spark Generator 120V Honeywell Q624A1014 Solid State Spark Generator 10,000V Output Voltage

Honeywell Q624A1014 Solid State Spark Generator

SKU: Q624A1014
UNSPSC: 39121022
Rating: (2)
Quantity Price Stock
366
Usually Ships 1 - 2 Weeks
$231.65     /ea
366

Buy in Bulk & Save

Quantity Price
5+ $221.62 /ea
0
$0.00
0
$0.00
0
Q624A1014

The Q624A1014 is a solid-state spark generator that has an electrical rating of 120V, 50/60 Hz, 10,000V output voltage, and 66VA power consumption.  It has 60 sparks per second firing range, 1/4" spark gap, and -40°F to 125°F (-40°C to 52°C) ambient temperature range.  The unit is UL-recognized, AGA, and CSA certified.

The solid-state spark generator is suitable for commercial and industrial gas burner applications.  The unit features a peak voltage of 15,000 volts for reliable ignition, with the ignition spark and ultraviolet detection synchronized to the AC supply voltage.  It also prevents the ignition spark from being detected when used with C7027, C7035, C7044 Minipeeper, or C7061 Dynamic Self-Check Ultraviolet Flame Detectors.

The Q624A1014 is easy to install and can be mounted where a conventional ignition transformer is located.  It also includes a threaded terminal nut high-voltage electrode.

Check out the available accessories:

Frequency 50/60Hz
Voltage 120V
Operating Humidity Range 95% RH
Ambient Operating Temperature -40°F to 125°F
Type of Service All types of gas ignition; not recommended for use when igniting oil
Output Voltage 10,000V
Primary VA Rating 66VA2
Spark Gap 1/4"
Application Commercial and Industrial Gas Burners
Approvals UL-recognized, AGA, and CSA certified

Download Product Information:

Honeywell Q624A1014 Solid State Spark Generator

By Richard

from CONCORD CA

Yes, I would recommend this product to a friend or co-worker

5.0 Honeywell Solid State Spark Generator

Great product!


By robin

from jacksonville FL

Yes, I would recommend this product to a friend or co-worker

5.0 carter

easy access and fast delivery
