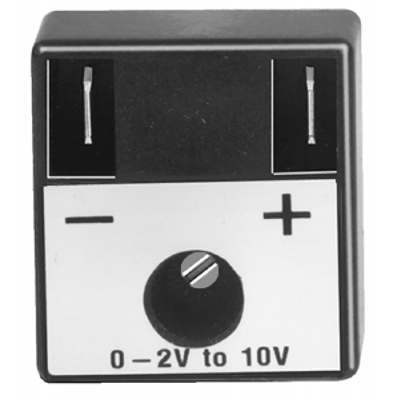

Honeywell Q769B1008 Modulating Signal Adapter for Damper Actuators
The Q769B 4 to 20 mA Adapter is used to provide a 4 to 20 mA modulating signal to the M7405 and M7415 Actuators when used with a 4 to 20 mA Controller. The Q769B can also be used instead of a Q709A to control the minimum position of an M7405 or M7415 Actuator when a C7150B is used as a temperature sensor. Q769 Adapter is used to provide a modulating signal to the M7415 Economizer Damper Motors when used with a controller.
NOTE: Do not use with a Jade (W7220) economizer.
| Actuator | M7415 |
|---|---|
| Dimensions | 1 3/8 in. high x 1 3/8 in. wide x 11/16 in. deep |
| Electrical Connections | Quick-connect terminals |
| Operating Temperature Range | -32 C to +52 C (-25 F to +125 F) |
| Control Signal | 4 to 20 mA |
