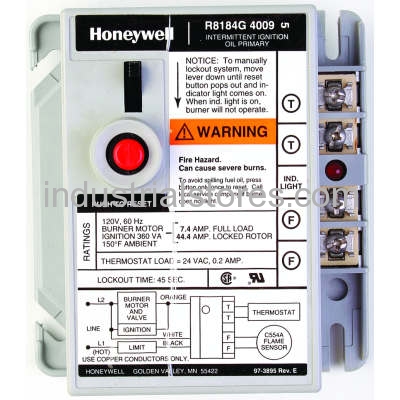

Overview Provides automatic nonrecycling control of an intermittent ignition oil burner system. Features Controls oil burner oil valve (if desired) and the ignition transformer in response to a call for heat. Solid state flame sensing circuit. LED on terminal strip indicates system lockout (available on some models). Remote lockout indication (available on some models). Enclosed safety switch with external reset button. Manual trip lever opens safety switch for system maintenance. Mounts on standard 4 x 4 in. junction box select models may be mounted directly on burner housing. C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.. Product Specifications Dimensions (in.) 4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep Dimensions (mm) 111 mm high x 104 mm wide x 64 mm deep Temperature Range (F) -40 F to +130 F Temperature Range (C) -40 C to +54 C Mounting For mounting on a standard 4 X 4 in. junction box or direct mounting to on burner hsg. Approvals Underwriters Laboratories Inc. UL Component Recognized File no. MP268 Vol. 35 Sec. 3 Approvals Canadian Standards Association CSA Certified File no. LR95329-1 Tradeline Value Tradeline Electrical Connections #8 Screw terms Ignition Type Intermittent Timing Safety Switch 30 sec. Electrical Ratings Contacts (full load) 7.4 A @ 120 Vac 3.7 a @ 240 Vac Electrical Ratings Contacts (locked rotor) 44.4 A @ 120 Vac 22.2 A @ 240 Vac
