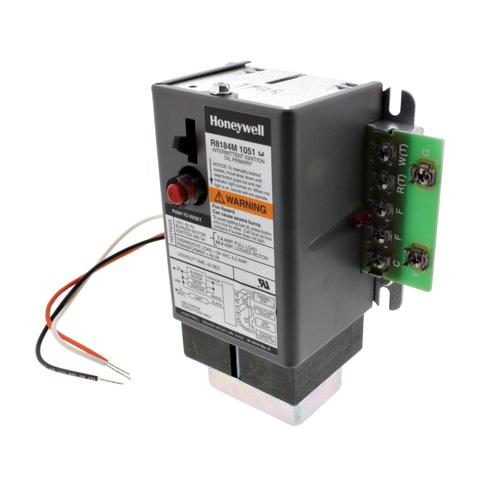

Honeywell R8184M1051 Series 80 Protectorelay Oil Burner Control with transformer

Honeywell R8184M1051 Series 80 Protectorelay Oil Burner Control with transformer
Images for general purposes only. Actual may be different than depicted.
Honeywell R8184M1051 Series 80 Protectorelay Oil Burner Control with transformer

Honeywell R8184M1051 Series 80 Protectorelay Oil Burner Control with transformer

SKU: R8184M1051
Rating:
Quantity Price Stock
47
Usually Ships 1-2 Weeks
$249.21     /ea
47

Buy in Bulk & Save

Quantity Price
5+ $236.75 /ea
0
$0.00
0
$0.00
0
R8184M1051
Honeywell R8184M1051 Series 80 Protectorelay Oil Burner Control with Transformer

The R8184M Protectorelay oil burner control opertaes the oil burner and oil valve (if desired) in response to a call for heat from a low voltage control circuit.  Provides automatic, nonrecycling control of an intermittent ignition oil burner system.

Features: Intermittent ignition is on while the burner is on. Solid state flame sensing circuit. External button to manually reset safety switch after lockout. Enclosed safety switch must be manually reset after safety shutdown. R8184M includes 40 VA transformer and Y and G terminals for connection of cooling equipment. Mounts on standard 4 x 4 in. junction box. C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.

Dimensions 4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
Temperature Range -40 C to +54 C (-40 F to +130 F)
Timing, Safety Switch 45 sec.
Ignition Type Intermittent
Electrical Ratings, Contacts (full load) 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
