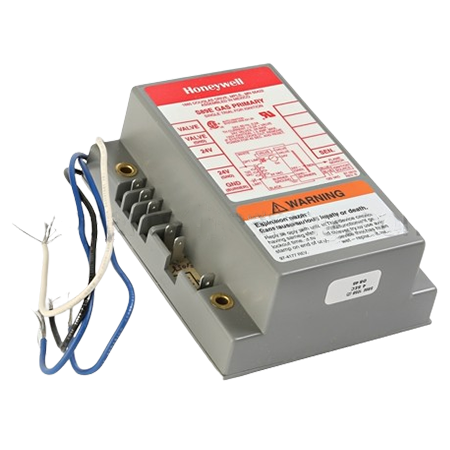

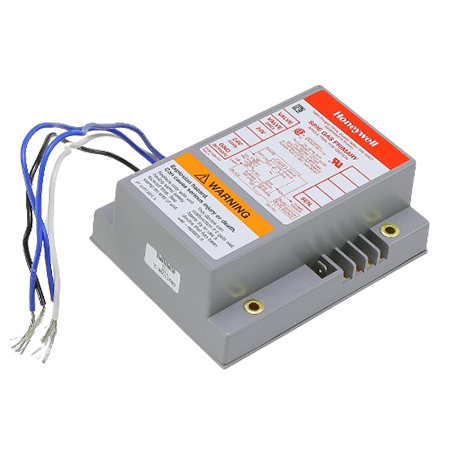

The Honeywell Resideo S89E1058 is a 24V direct spark ignition control module designed for safe and reliable ignition in gas-fired atmospheric and power burners, typically used in residential furnaces and heating systems.

This module features a 10-second maximum safe start delay to ensure safety before ignition, with a 2-second maximum flame failure response time and a maximum re-ignition time of 0.8 seconds.  The 4-second ignition trial ensures dependable flame detection, utilizing flame rectification to monitor and verify flame presence.

The S89E1058 is easy to install and works with a 120 VAC spark generator. It is designed for single-trial main burner ignition and will shut down and lock out if the burner fails to ignite, enhancing safety and reliability.  This module is UL-recognized and CSA-approved, meeting safety standards.

The S89E1058 also replaces S89E1066, S89E1009, and S89E1033 direct spark ignition modules.
