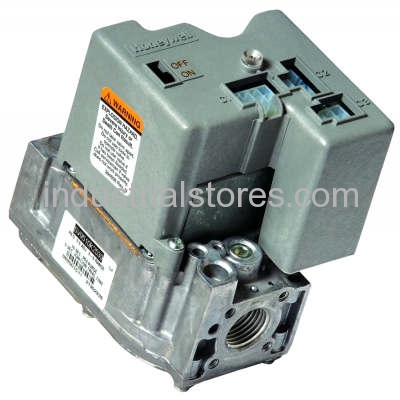

Overview The SV9520 SmartValve� System Controls combine gas flow control and electronic direct main burner ignition sequencing functions into a single unit and provide all gas ignition safety functions by controlling gas flow ignition source and air blower. Features The control communicates directly with the ST9160 Electronic Fan Timer (EFT) in typical forced warm air furnace applications. It will interface with the 208907 Terminal Board providing compatibility with power-stealing thermostats.It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications. When controlled directly by a thermostat the control does not provide a postpurge function as power to the control is removed when the thermostat call for heat ends. This system is suitable for a wide range of fan-assisted combustion gas-fired appliances including furnaces rooftop furnaces boilers unit heaters infrared heaters water heaters and commercial cooking appliances. Product Specifications Dimensions (in.) 3.2 in. wide x 4.9 in. high x 4.1 in.long Dimensions (mm) 81 mm wide x124 mm high x 104 mm long. Includes LP Conversion Kit Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob including vertically. Electrical Ratings 24 Vac Frequency 50 Hz 60 Hz Approvals Canadian Standards Association CSA International: 158158-10592145 Tradeline Value Super Tradeline Voltage Call for heat--24 Vac 60 Hz Flame Failure Response Time (sec) 2 sec @ 5 �A PrePurge 15 seconds Ambient Temperature Range (F) 0 F to 175 F Ambient Temperature Range (C) -18 C to +79 C Ignition System Type Direct Hot Surface Ignition Ignition Sequence 7/12 sec Type of Gas Natural Flame Sense Two Rod Ignition Trials To Lockout 4 trials Ignition Trial Time (sec) 7 sec Body Pattern Straight-through Opening Characteristics Fast-Slow Opening Pressure Regulator Setting (psi) 3.5 in. wc Pressure Regulator Setting (kPa) 0.87 kPa Pressure Ratings (psi) 1/2 psi Pressure Ratings (kPa) 3.5 kPa Inlet/Outlet Size (in.) 1/2 in. NPT x 1/2 in. NPT Capacity (ft�/hr) Maximum at 1 in. P.D.--150 ft�/hr Maximum--200 ft�/hr Minimum--20 ft�/hr Capacity (m�/hr) Maximum at 1 in. P.D.--4.2 m�/hr Maximum--5.7 m�/hr Minimum--0.6 m�/hr Pressure Tapping 1/8 in. - NPT
