Overview

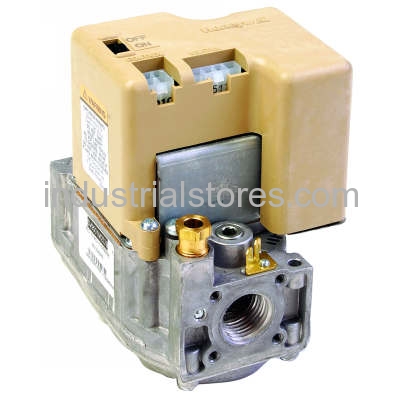

The SV9602 SmartValve System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications.
Product Specifications
Dimensions (in.)
3.2 in. wide x 4.9 in. high x 4.1 in.long
Dimensions (mm)
81 mm wide x124 mm high x 104 mm long.
Mounting
0 to 90 degrees in any direction from the upright position of the gas control knob including vertically.
Electrical Ratings
24 Vac
Frequency
50 Hz 60 Hz
Approvals Canadian Standards Association
CSA-International Design Certified
Tradeline Value
Tradeline
Voltage
Call for heat--24 Vac 60 Hz
Flame Failure Response Time (sec)
1.6 sec @ 3 A
PrePurge
30 seconds
Ambient Temperature Range (F)
-40 F to +175 F
Ambient Temperature Range (C)
-40 C to +79 C
Ignition System Type
Intermittent Hot Surface Pilot Ignition
Ignition Sequence
Intermittent Pilot
Type of Gas
LP
Flame Sense
Two Rod
Ignition Source
Pilot
Ignition Trials To Lockout
continuous retry
Ignition Trial Time (sec)
90 sec
Body Pattern
Straight-through
Opening Characteristics
Step Opening
Pressure Regulator Setting (psi)
Full Rate: 10.0 in. wc Step Setting: 2.5 in. wc
Pressure Regulator Setting (kPa)
Full Rate: 2.49 kPa Step Setting: 0.62 kPa
Inlet/Outlet Size (in.)
3/4 in. NPT x 3/4 in. NPT.
Capacity (ft/hr)
Maximum at 1 in. P.D.--300 ft/hr Maximum--415 ft/hr Minimum--30 ft/hr
Capacity (m/hr)
Maximum at 1 in. P.D.--8.5 m/hr Maximum--11.8 m/hr Minimum--0.8 m/hr
Pressure Tapping
1/8 in. - NPT
