Honeywell T3019W0NA Direct Mount Internal Sensor V100

Name: Honeywell T3019W0NA Direct Mount Internal Sensor V100
Brand: Honeywell Resideo
SKU: T3019W0NA
Price: 35.73 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell T3019W0NA Direct Mount Internal Sensor V100

SKU: T3019W0NA

Tariff HS Code: 3032100060

Brand:

Rating:

Quantity	Price	Stock
31 Usually Ships 1 - 2 Weeks	$35.73 /ea	31

Buy in Bulk & Save

Quantity	Price
5+	$33.94 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

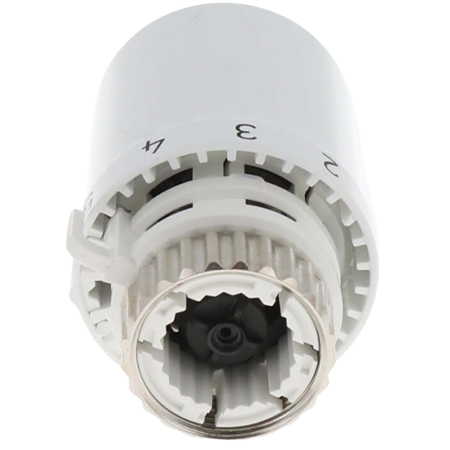

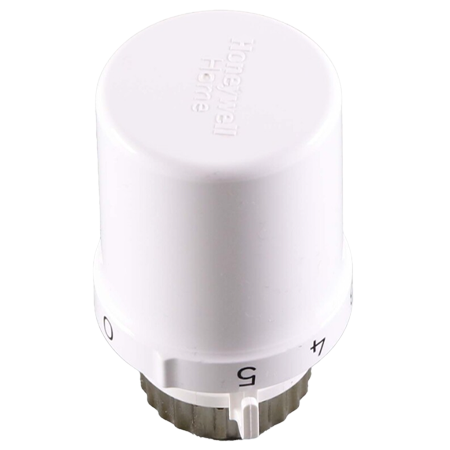

The T3019W0NA is a direct-mount internal sensor that has an M30 x 1.5 connection. It has a 34 to 82°F (1 to 28°C) set point range with an integral sensor.

The thermostatic radiator head is suitable for residential applications. The unit is used to regulate the flow of hot water through the thermostatic radiator valves and constantly control the room temperature according to the head settings.

The T3019W0NA is easy to install with a frost protection setting that allows excellent performance.

Sensor	Integral
Connection	M30 x 1.5 thread
Specific Stroke	0.0048 in/°F (0.22 mm/K)
Temperature Set Point Range	34 to 82°F (1 to 28°C)
Minimum Operating Water Temperature	104°F (40°C)
Closing Force	20 lbf (90 N)
Thermal Expansion Element Material	Steel, copper bellows, filled with ethyl acetate
Spring Ring Material	Steel
Coupling Nut Material	Brass, nickel plated
Maximum Ambient Temperature	122°F (50°C)

Download Product Information:

Honeywell Thermostatic Radiator Valve Installation Instructions

Honeywell Thermostatic Radiator Valve Catalog

Honeywell Thermostatic Radiator Valve Head Technical Datasheet
