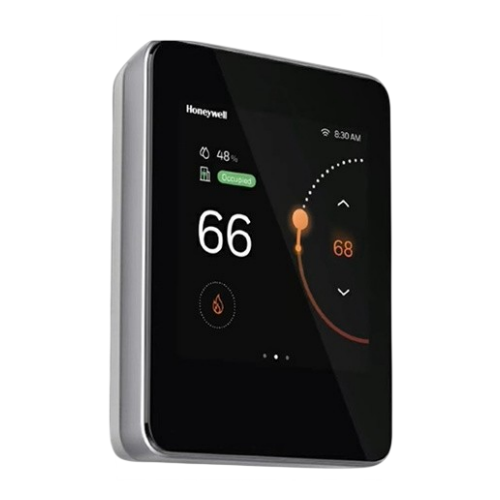

Honeywell TC500A-N Commercial Thermostat is a connected commercial HVAC thermostat built for precise comfort control, equipment monitoring, and building automation integration in AHU, RTU, heat pump, and conventional HVAC systems.
Designed for demanding commercial building applications, the TC500A-N supports up to 3 heat and 3 cool staging for conventional systems, up to 5 heat and 3 cool staging for heat pump systems, and 0–10V modulating heating or cooling output for advanced equipment control.

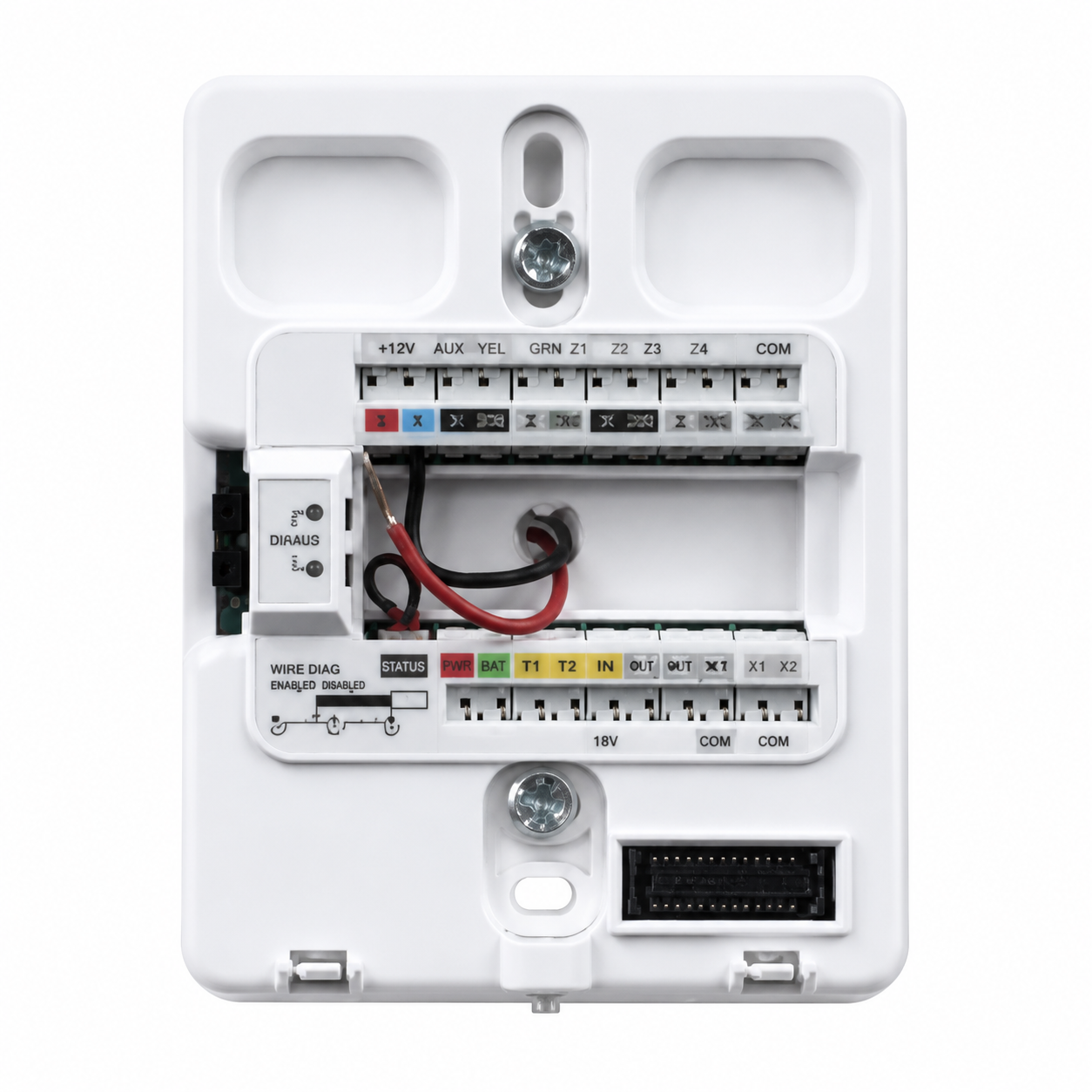

Embedded Wi-Fi, Bluetooth Low Energy, BACnet IP, BACnet MS/TP, and Sylk bus terminals provide flexible BAS connectivity for remote scheduling, monitoring, commissioning, and system integration.

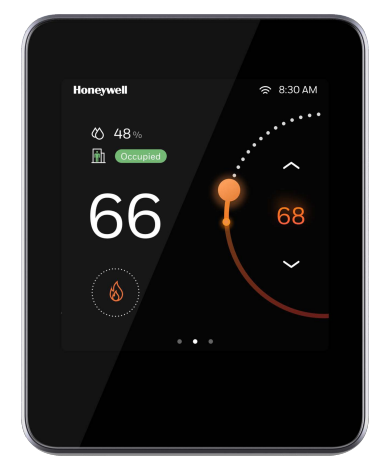

The 4-inch 480 x 480 color capacitive touchscreen, built-in temperature, humidity, and proximity sensing, configurable universal inputs/outputs, economizer support, freeze protection, OpenADR demand response, and security access levels help improve comfort, energy performance, troubleshooting visibility, and control protection across commercial HVAC installations.
The TC500A-N replaces the following Commercial Programmable Thermostat models T7351F2010, 2ET077001124, T7350H1017 and TB3026B-W Wireless Thermostat.
Frequently Asked Questions
- What is the Honeywell TC500A-N used for?
The Honeywell TC500A-N is used to control and monitor commercial HVAC systems, including AHU, RTU, heat pump, and conventional HVAC equipment.
- Is the Honeywell TC500A-N compatible with AHU and RTU systems?
Yes. The TC500A-N is designed for commercial air handling unit and rooftop unit applications.
- Does the TC500A-N support building automation systems?
Yes. It supports BAS integration through Wi-Fi, Bluetooth Low Energy, BACnet IP, BACnet MS/TP, and Sylk communication.
