Honeywell TR21-H Temperature Wall Module Sensor

Name: Honeywell TR21-H Temperature Wall Module Sensor
Brand: Honeywell
SKU: TR21-H
Price: 233.10 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell TR21-H Temperature Wall Module Sensor

SKU: TR21-H

UNSPSC: 0852673144

Brand:

Rating:

Quantity	Price	Stock
2 Usually Ships 1-2 Weeks	$233.10 /ea	2

Buy in Bulk & Save

Quantity	Price
5+	$221.43 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The TR21, TR22, TR23, and TR24 are a family of direct wired wall modules for use with Honeywell Excel 600, 500, 100, and 80 controllers; Excel 10 W7750, W7751A, W7752, and W7753 controllers; W7761 Controller; and Spyder Unitary Controllers.

Features

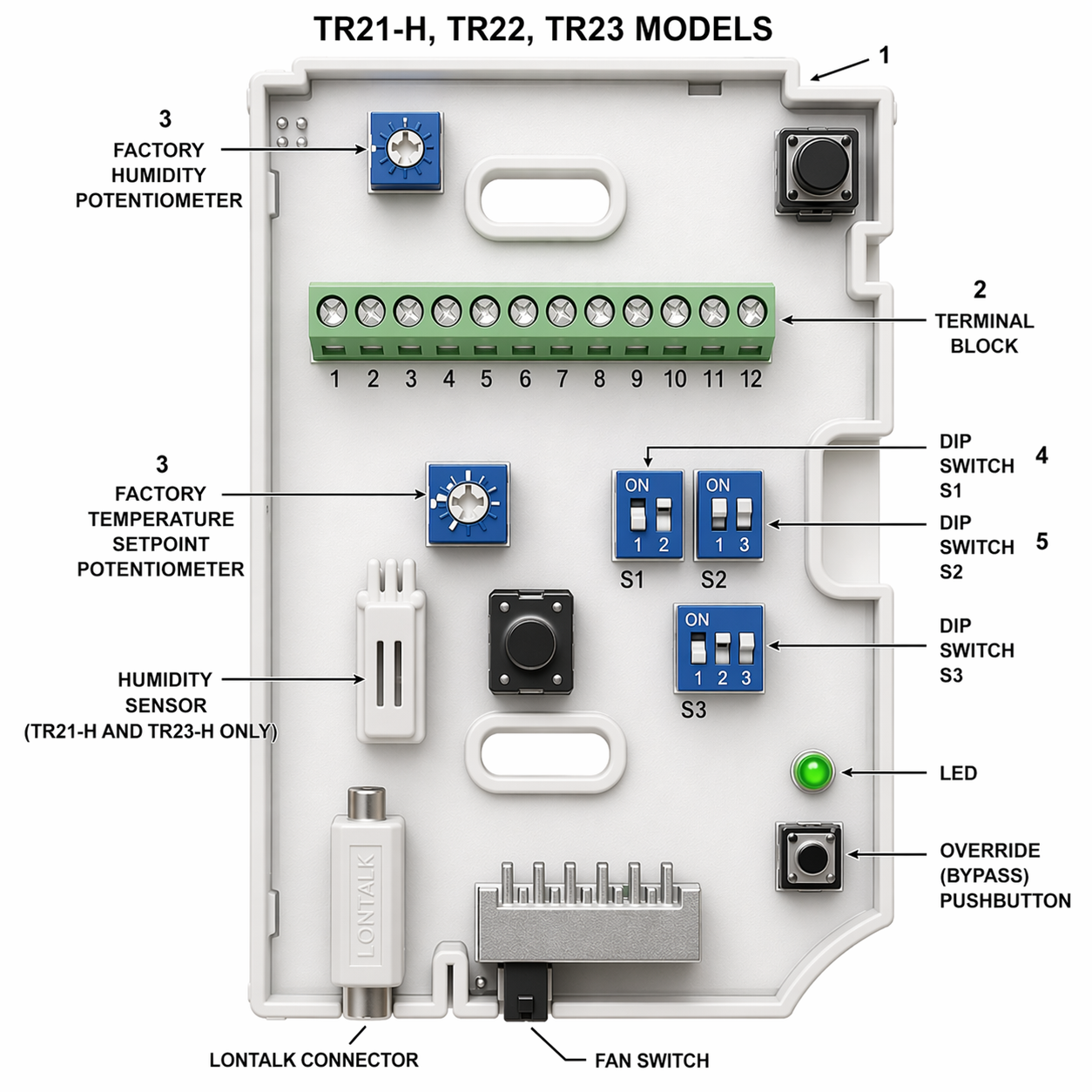

• Models available with user selectable setpoint adjustment dials in Fahrenheit, Celsius and Relative Scales
• Models available with occupied/unoccupied override (bypass) with LED
• Models available with 3-position (auto/0/1) or 5-position (auto/0/1/2/3 speed) fan switch
• LONWORKS network jack on all models except the TR21 and TR21-A models
• Models available with on board humidity sensor, humidity output: 0-10Vdc, 0-5 Vdc, 4-20ma selectable

Humidity Range	5% to 95% RH, non-condensing
Setpoint Range	55°F to 85°F (13°C to 30°C)
Sensor Type	20k Ω NTC Non-Linear
Mounting	Standard 2" x 4" junction box or 60mm diameter junction box
Approvals	CE; UL94 plastic enclosure; FCC Part 15, Class B

Download Product Information:

Honeywell TR21-TR24 Series Wall Modules Installation Instructions

Honeywell TR21-TR24 Series Wall Modules Technical Datasheet
