Honeywell TX-12 Thermal Expansion Tank 3/4" External NPT Male Connection 4.4 Gal

Name: Honeywell TX-12 Thermal Expansion Tank 3/4" External NPT Male Connection 4.4 Gal
Brand: Honeywell Resideo
SKU: TX-12
Price: 121.49 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell TX-12 Thermal Expansion Tank 3/4" External NPT Male Connection 4.4 Gal

SKU: TX-12

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 1 - 2 Weeks	$121.49 /ea	1

Buy in Bulk & Save

Quantity	Price
5+	$115.08 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

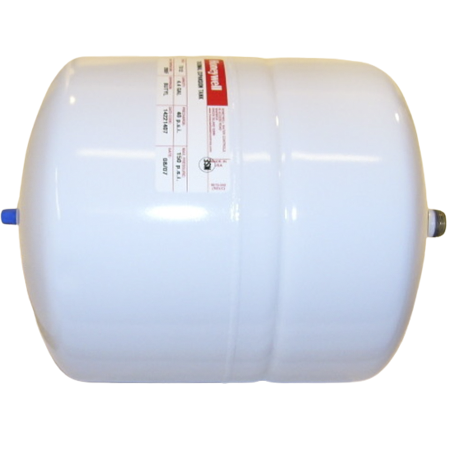

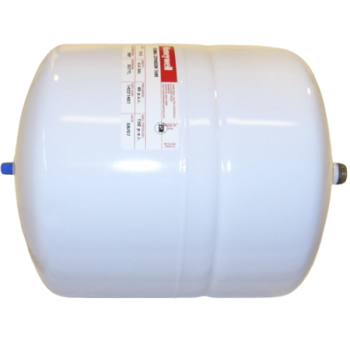

The TX-12 is a thermal expansion tank that has a 4.4 Gallons (16.7 liters) total volume and 3.2 Gallons (12.1 liters) maximum accepted volume. It has a tank measurement of 11" (279 mm) diameter and 15" (381 mm) height with a 3/4" male NPT connection size.

The thermal expansion tank is suitable for use with potable hot water system applications. The unit's function is to regulate excessive pressure in household and small commercial hot water heaters and prevent relief valve operation.

The TX-12 is easy to install and maintenance-free. It is also designed with a heavy-duty butyl rubber diaphragm to isolate water from the air.

Maximum Temperature	200°F (93°C)
Height	15" (381 mm)
Diameter	11" (279 mm)
Connection Size	3/4" Male NPT
Total Volume	4.4 Gallons (16.7 liters)
Diaphragm Material	Butyl Rubber
Maximum Acceptance Volume	3.2 Gallons (12.1 liters)
Maximum Pressure	150 psi (1034 kPa)
Standard Factory Air Charge	40 psi (276 kPa)
Connection Material	Brass

Download Product Information:

Honeywell TX-12 Thermal Expansion Tank Specification Data
