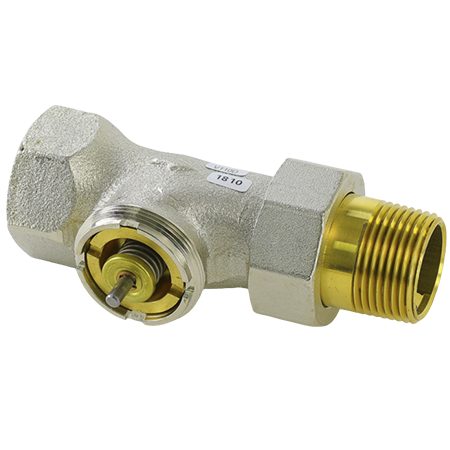

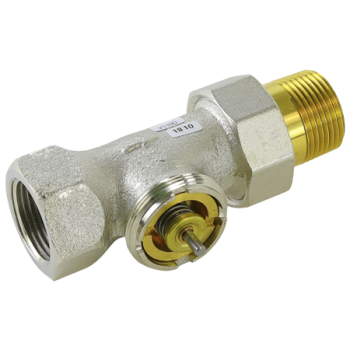

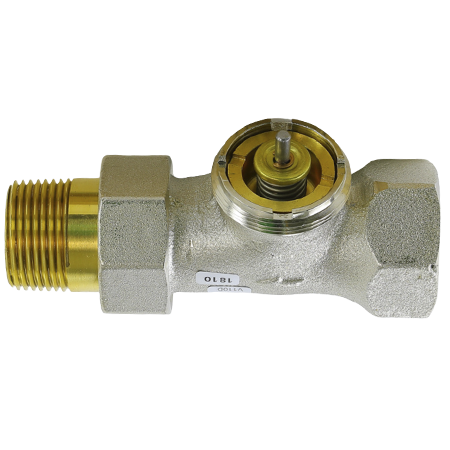

Honeywell V110D1016 Radiator Valve 1" Straight Body for T104 Series Sensor

Name: Honeywell V110D1016 Radiator Valve 1" Straight Body for T104 Series Sensor
Brand: Honeywell Resideo
SKU: V110D1016
Price: 129.30 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V110D1016 Radiator Valve 1" Straight Body for T104 Series Sensor

SKU: V110D1016

UPC: 8526710316

Brand:

Rating:

Quantity	Price	Stock
7 Usually Ships 1 - 2 Weeks	$129.30 /ea	7

Buy in Bulk & Save

Quantity	Price
5+	$122.83 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The V110D1016 is a radiator valve that has a 1" threaded pipe connection size. It has a nickel-plated brass body that can withstand up to 248°F (120°C) temperature, 150 psi (1034 kPa) pressure for hot water, and 15 psi (103 kPa) for steam.

The radiator valve is suitable for hot water and 2-pipe steam system applications providing automatic control of temperature by modulating the flow of hot water or steam meeting high capacity requirements. The unit has a 193,000 BTU/hr capacity allowing excellent performance and operation.

Check out the available accessories:

CA110C107 Replacement Cartridge
MT110C1011 Cartridge Changing Tool
MT110D1019 Service Socket Tool
T104A1040 Direct Mount Actuator

High Capacity Thermostatic Radiator Actuators:

Maximum Steam Pressure Ratings	15 psi (103 kPa)
Maximum Hot Water Pressure Ratings	150 psi (1034 kPa)
Temperature Range	248°F (120°C) Maximum
Flow Capacity	7.0 Cv
Body Material	Nickel Plated Brass
Capacity	193,000 BTU/hr
Body Pattern	Straight
Application	Steam and Hot Water
Pipe Connection Size	1" Threaded
Valve Seat Disc Material	EPDM
