Honeywell V110E1012 Angle Pattern 3/4" Valve

Name: Honeywell V110E1012 Angle Pattern 3/4" Valve
Brand: Honeywell Resideo
SKU: V110E1012
Price: 98.21 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V110E1012 Angle Pattern 3/4" Valve

SKU: V110E1012

Brand:

Rating:

Quantity	Price	Stock
6 Usually Ships 1 - 2 Weeks	$98.21 /ea	6

Buy in Bulk & Save

Quantity	Price
10+	$93.30 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

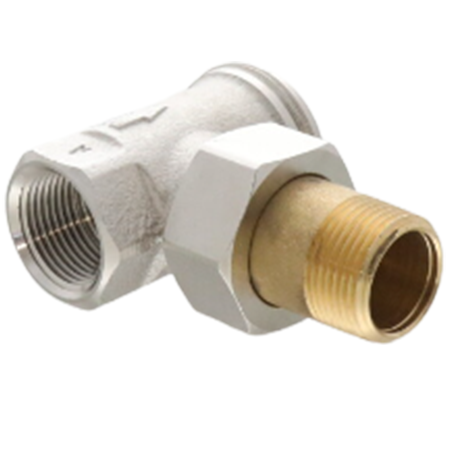

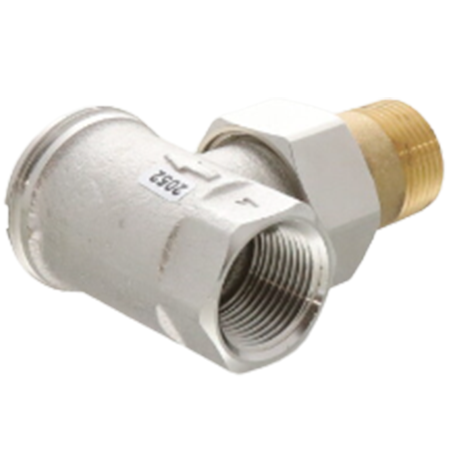

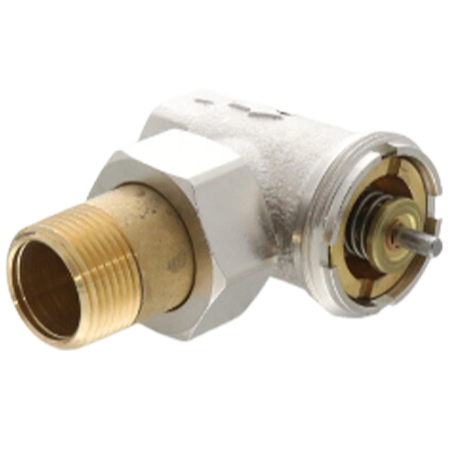

The V110E1012 is an angle pattern radiator valve that has a 3/4" threaded pipe connection size with a nickel plated brass body construction. It has a 17 psi maximum differential, 150 psi water and 15 steam pressure rating with 248°F(120°C) maximum temperature.

The angle pattern radiator valve is suitable for 2-pipe steam and hot water system applications. The unit provides automatic valve opening and closing depending on the room temperature when installed with the T104 series control with up to 127,000 BTU/hr capacity.

Check out the available Accessories:

CA110C107 Replacement Cartridge
MT110C1011 Cartridge Changing Tool
MT110D1019 Service Socket Tool
T104A1040 Direct Mount Actuator

High Capacity Thermostatic Radiator Actuators:

Maximum Differential	17 psi
Maximum Temperature	248°F (120°C)
Pipe Connection Size	3/4" Threaded
Body Material	Nickel-Plated Brass
Maximum Water Pressure Rating	150 psi
Maximum Steam Pressure Rating	15 psi
Capacity	127,000 BTU/hr
Flow Capacity	5.8 Cv
Body Pattern	Angle
Applications	2-Pipe Steam and Hot Water Systems
