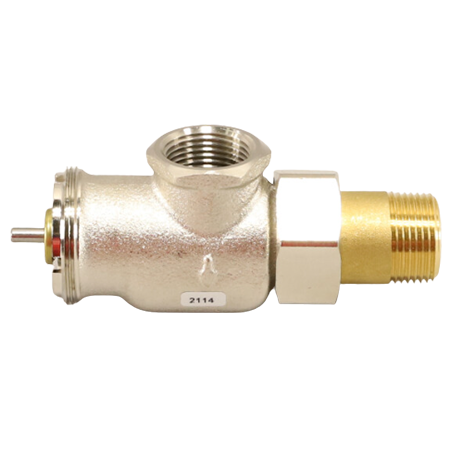

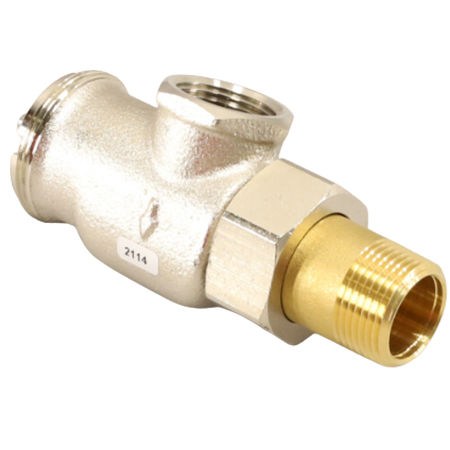

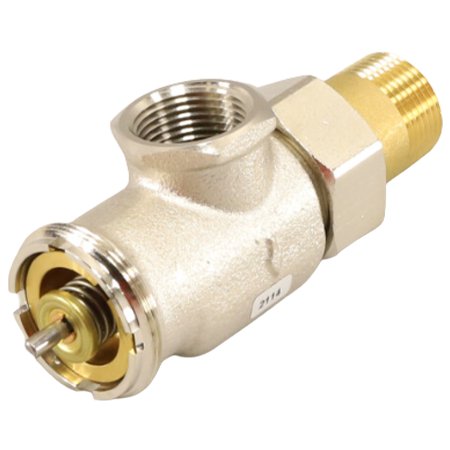

Honeywell V110F1010 Valve Body- Horizontal Angle Pattern With 3/4 MNPT Tailpiece

Name: Honeywell V110F1010 Valve Body- Horizontal Angle Pattern With 3/4 MNPT Tailpiece
Brand: Honeywell Resideo
SKU: V110F1010
Price: 135.51 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V110F1010 Valve Body- Horizontal Angle Pattern With 3/4 MNPT Tailpiece

SKU: V110F1010

UPC: 8526710328

Brand:

Rating:

Quantity	Price	Stock
37 Usually Ships 1 - 2 Weeks	$135.51 /ea	37

Buy in Bulk & Save

Quantity	Price
10+	$128.73 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The V110F1010 is a valve body that has a horizontal angle pattern with a 3/4" threaded connection size. It has a 17 psi maximum differential, 150 psi water, 15 psi steam, and 248°F (120°C) maximum temperature.

The radiator valve is designed with nickel-plated brass construction suitable for two-pipe hot water and steam system applications. The unit is used for automatically opening and closing with a seat disc made of EPDM material providing excellent performance and efficiency.

Check out the available accessories:

CA110C107 Replacement Cartridge
MT110C1011 Cartridge Changing Tool
MT110D1019 Service Socket Tool
T104A1040 Direct Mount Actuator

High Capacity Thermostatic Radiator Actuators:

Capacity	162,000 BTU/hr
Maximum Temperature	248°F (120°C)
Body Material	Nickel-Plated Brass
Maximum Water Pressure	150 psi
Maximum Steam Pressure	15 psi
Maximum Differential Pressure	17 psi
Applications	Two-Pipe Steam and Hot Water Systems
Body Pattern	Horizontal Angle
Connection Size	3/4" Threaded
Flow Capacity	5.8 Cv
