Honeywell V110F1018 Valve Body- Horizontal Angle Pattern With MNPT Tailpiece 1 OU

Name: Honeywell V110F1018 Valve Body- Horizontal Angle Pattern With MNPT Tailpiece 1 OU
Brand: Honeywell Resideo
SKU: V110F1018
Price: 138.52 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V110F1018 Valve Body- Horizontal Angle Pattern With MNPT Tailpiece 1 OU

SKU: V110F1018

UPC: 8526710329

Brand:

Rating:

Quantity	Price	Stock
15 Usually Ships 1 - 2 Weeks	$138.52 /ea	15

Buy in Bulk & Save

Quantity	Price
5+	$131.59 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

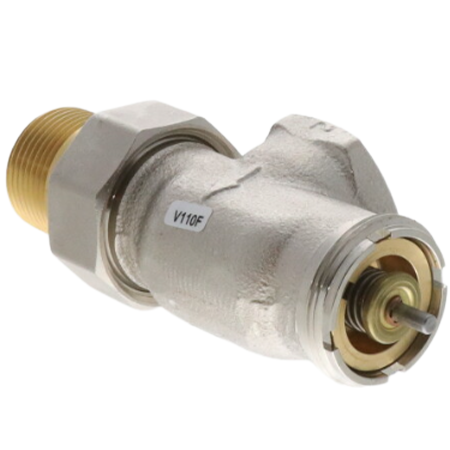

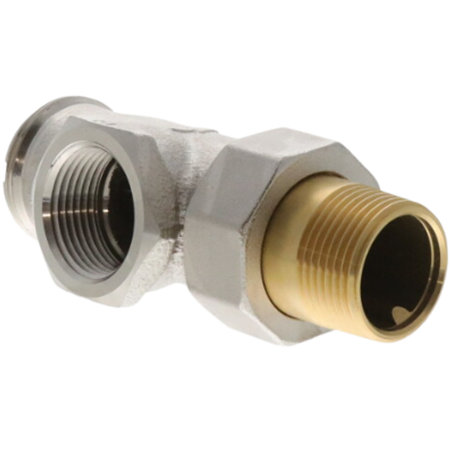

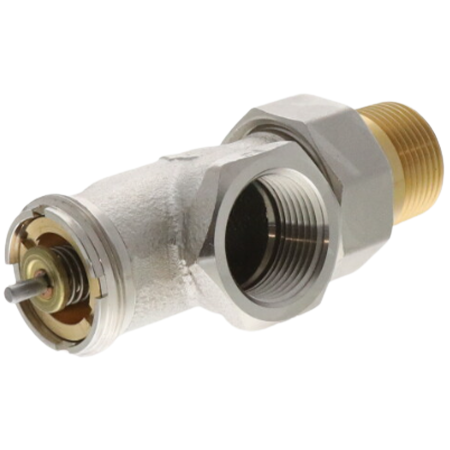

The V110F1018 is a valve body that has a horizontal angle pattern with a 1" threaded male NPT connection size. It has a capacity of 193,000 Btu/hr, with a maximum water pressure rating of 150 psi, a steam pressure rating of 15 psi, and a differential pressure of 17 psi.

The thermostatic radiator valve is well-suited for use in both two-pipe hot water and steam system applications. The unit is crafted with a nickel-plated brass body and an EPDM seat disc, ensuring excellent durability and exceptional performance.

Check out the available accessories:

CA110C107 Replacement Cartridge
MT110C1011 Cartridge Changing Tool
MT110D1019 Service Socket Tool
T104A1040 Direct Mount Actuator

High Capacity Thermostatic Radiator Actuators:

Capacity	193,000 Btu/hr
Flow Capacity	7 Cv
Body Material	Nickel-Plated Brass
Maximum Water Pressure	150 psi
Maximum Steam Pressure	15 psi
Maximum Differential Pressure	17 psi
Applications	Two-Pipe Steam and Hot Water Systems
Body Pattern	Horizontal Angle
Connection Size	1" Threaded
Maximum Temperature	248°F (120°C)

Download Product Information:

Honeywell V110F1018 Thermostatic Radiator Valve Technical Datasheet

Honeywell Hydronic Heating Solutions Catalog

Honeywell Thermostatic Radiator Valve Selection Guide
