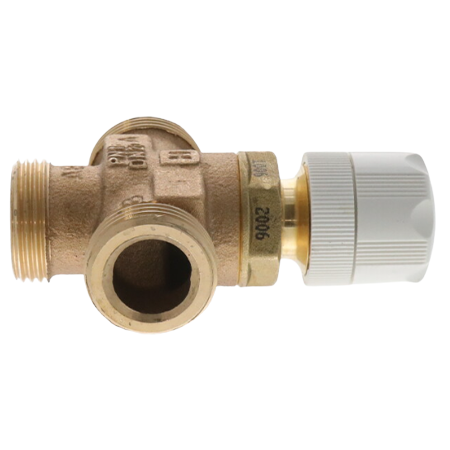

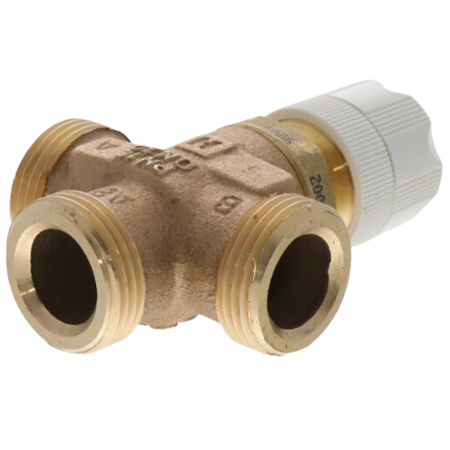

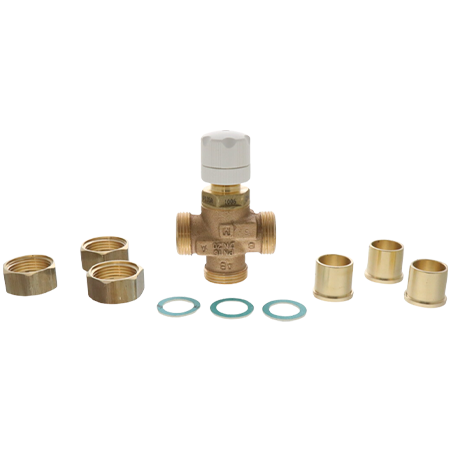

Honeywell V135A1006 3-Way Valve Body 3/4" FEMALE Sweat Union

Honeywell V135A1006 3-Way Valve Body 3/4" FEMALE Sweat Union
Images for general purposes only. Actual may be different than depicted.
Honeywell V135A1006 3-Way Valve Body 3/4" FEMALE Sweat Union Honeywell V135A1006 3-Way Valve Body 147 psi Honeywell V135A1006 3-Way Valve Body for Hydronic Heating

Honeywell V135A1006 3-Way Valve Body 3/4" FEMALE Sweat Union

SKU: V135A1006
UPC: 8526781423
Rating:
Quantity Price Stock
9
Usually Ships 1 - 2 Weeks
$272.05     /ea
9

Buy in Bulk & Save

Quantity Price
4+ $258.45 /ea
0
$0.00
0
$0.00
0
V135A1006
The V135A1006 is a 3-way valve body that has a 3/4" female Sweat Union connection size.   It has a 147 psi maximum differential pressure, 232 psi system pressure rating, 3.7 Cv flow capacity, and 0.08" (2 mm) stroke length.

The three-way valve is suitable for hydronic heating system applications and can be used as a mixing or diverting valve.  The unit provides quick and easy operation with the included plastic handle.

The V135A1006 is easy to install with a double stem seal design which allows replacement under pressure without draining the system.  The K06U1101 cartridge kit, 0901444 gasket kit, and V135A-12VE cartridge replacement parts are also available.
Maximum Differential Pressure 147 psi
Stroke Length 0.08" (2 mm)
Flow Capacity 3.7 Cv
Connection Size 3/4" Female Sweat Union
Application Hydronic Heating
Body Material Bronze
Steam Material Stainless Steel
Maximum Temperature 248°F (120°C)
Maximum System Pressure 232 psi
