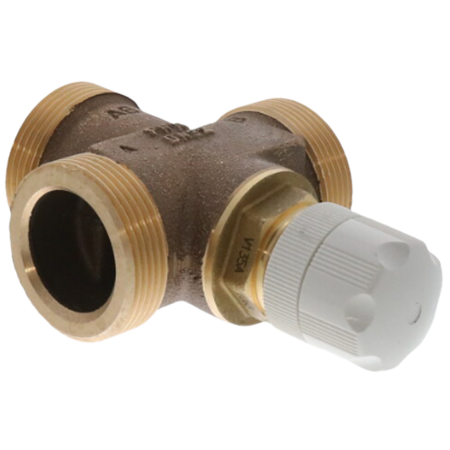

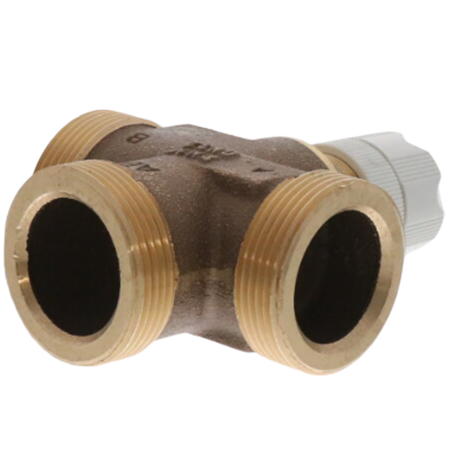

The V135A1063 is a 3-way valve body that has a bronze body construction with a 1-1/4" Female Sweat Union connection size.  It has a 5.8 Cv flow capacity, 0.08" (2 mm) stroke length, 147 psi maximum differential, and 232 psi system pressure rating with up to 248°F (120°C) temperature.

The three-way valve body is ideal for hydronic heating system applications as a mixing or diverting valve.  The unit includes a plastic handle that provides manual operation of the valve.  It has a stainless steel stem construction that allows excellent durability and life.

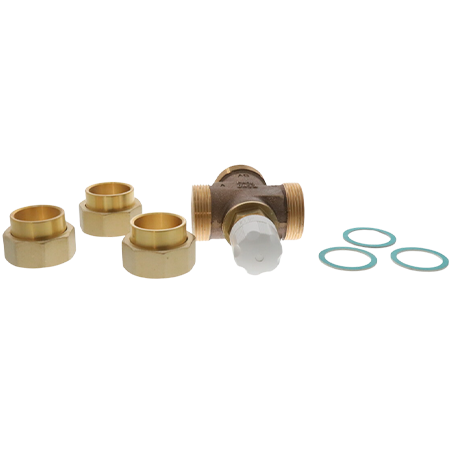

The V135A1063 is easy to install allowing the outer bushing with O-rings to be replaced under pressure with a double-stem seal design.  The 0901446 union gasket and V135A-1VE cartridge replacement parts are also available.
