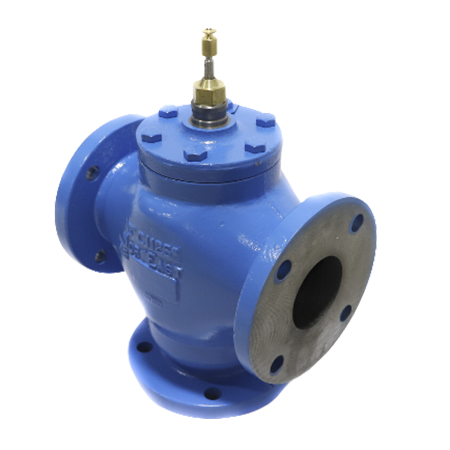

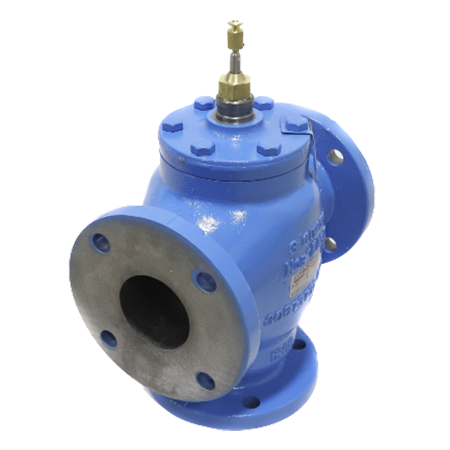

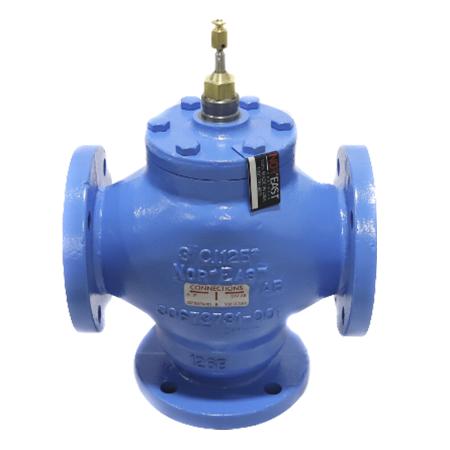

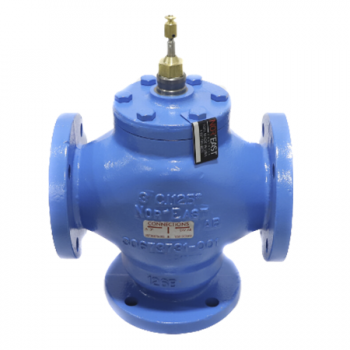

The V5013C1019 is a three-way diverting globe valve that has a 3" size cast iron body and a bronze trim with flanged end connections. It has a spring load with self-adjusting packing that provides linear flow characteristics for each port and can hold up to 150 psi of pressure.
The three-way diverting globe valve is suitable for pneumatic or electric actuation control of hot water, cold water, and glycol solutions with up to 50% concentration in heating or cooling applications. The unit is used to control the flow from inlet AB to either outlet A or B.
The V5013C1019 is quick and easy to install with a stainless steel stem and replaceable seats. Also available is the 14003295-004 repack & rebuild kit accessory.
Check out the available replacement parts:
| Part No. | Description | Part No. | Description |
| 30041035-854 | Upper Stem Wiper | 30067843-905 | Seat Ring |
| 30041084-218 | Spring | 30067857-107 | Packing Nut |
| 30041086-107 | Spring Flange | 30067860-859 | Gasket |
| 30041088-107 | Button Stem | 30067867-760 | Plug |
| 30048312-322 | Seal Nut | 30067872-316 | Stem |
| 30067531-891 | O-Ring | 30067876-107 | Bushing |
| 30067828-200 | Bonnet 3" |
| Body Size | 3" |
|---|---|
| Flow Capacity | 100 Cv |
| Body Material | Cast Iron |
| Trim Material | Bronze |
| End Connection Type | Flanged |
| Maximum Pressure | 150 psi |
