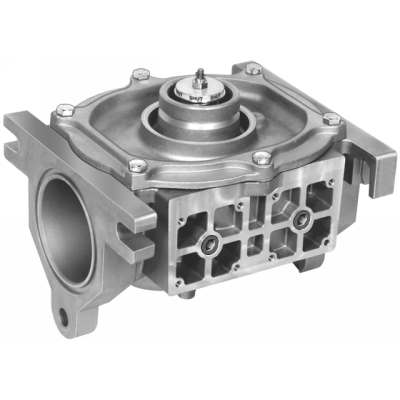

Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.

Features

• Use with natural or LP gases.
• Mount directly in gas supply line.
• Two Valve body types. Small body type for 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in. pipes. Large body types for 2 in., 2-1/2 in. and 3 in. pipes.
• Seven pipe adapter sizes from 3/4 in. to 3 in. have NPT or BSP threaded connections.
• Provides three 1/4 in. upstream and two 1/4 in. downstream tap and plug.
• CE version provides an additional downstream tap and plug.
• Yellow SHUT indicator attached to the valve stem provides an indication of the valve closed position.
• V5097A,C,D,E Valves are for on-off service.
• V5097B Valve has a characterized guide and in combination with the V4055, V4062 and V9055 Fluid Power Actuators, provides slow-opening, HI-LO-OFF, and modulating functions, respectively.
• V5097C,E Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
• Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
• V5097D,E Valves are for high pressure applications.
• Two valve body types (small and large) applicable to server pipe size.
