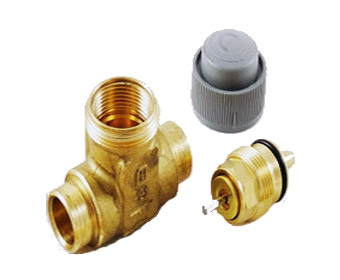

Overview Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units small re-heaters and re-coolers in temperature controllers. Use with M6410 and M7410 Actuator. 1/2 & 3/4 size fit with the M6435 M7435 and the MP958 Actuators. Features Long stroke allows wider range of control. Soft valve seat provides low leakage rate. Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool. Brass body and Stainless Steel stem. Threaded plastic cover/manual handle allows manual operation. Easily installed in areas where space is limited. Product Specifications Dimensions (in.) 2 89/96 in. high x 3/4 in. wide x 3 in. deep Dimensions (mm) 74 mm high x 19 mm wide x 76 mm deep Maximum Safe Operating Pressure (psi) 235 psi Maximum Safe Operating Pressure (kPa) 1620 kappa Used With M6410A1029 M7410F1000 M6435A1004 M7435F1001 MP958 Ambient Temperature Range (F) 36 F to 230 F Ambient Temperature Range (C) 2 C to 110 C Connection Type Sweat (Female) Body Pattern Two-way Pipe Size (inch) 1/2 in. Pipe Size (DN) DN15 Maximum Differential Pressure Ratings (Close-off) (psi) 232 psi Maximum Differential Pressure Ratings (Close-off) (kPa) 1600 kPa Capacity (Cv) 0.47 Cv Capacity (Kv) 0.41 kvs Valve Action Stem down to close Valve Type Cartridge Globe Valve Controlled Fluid Chilled or hot water with up to 50% Glycol. Not for use with steam or fuels. Materials (Body) Brass Materials (Seat) Brass Materials (Stem) Stainless Steel Materials (Cartridge) Brass Flow Characteristic Equal Percentage Actuation Must be purchased separately Stem Travel (in.) 1/4 in. Stem Travel (mm) 6.4 mm Materials (Plug/Ball/Disc) Brass Leakage ANSI Class IV (0.01% of Cv maximum)
