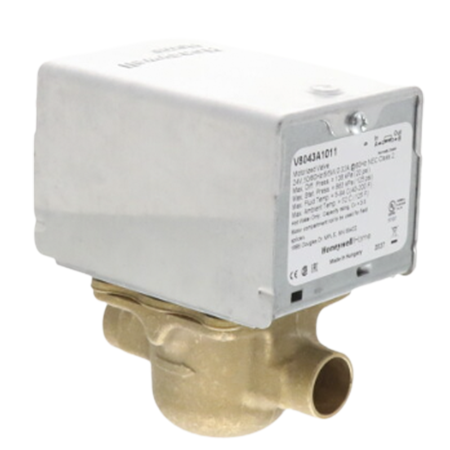

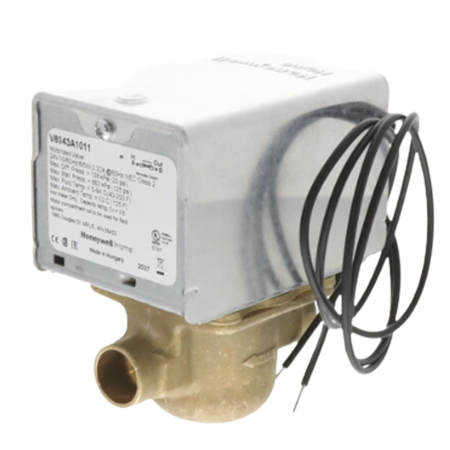

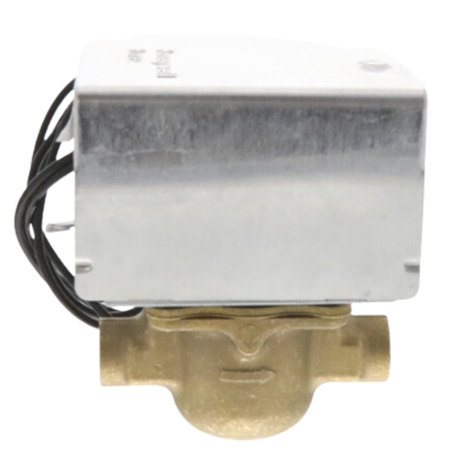

Honeywell V8043A1011 Motorized Zone Valve 24V 1/2" Normally Closed 3.5Cv 20 PSI

Name: Honeywell V8043A1011 Motorized Zone Valve 24V 1/2" Normally Closed 3.5Cv 20 PSI
Brand: Honeywell
SKU: V8043A1011
Price: 132.36 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V8043A1011 Motorized Zone Valve 24V 1/2" Normally Closed 3.5Cv 20 PSI

SKU: V8043A1011

Brand:

Rating:

Quantity	Price	Stock
29 Usually Ships 1 - 2 Weeks	$132.36 /ea	29

Buy in Bulk & Save

Quantity	Price
5+	$125.75 /ea

Add to Cart

Add to Wishlist

The V8043A1011 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell V8043C1041 Motorized Zone Valve 24V 1/2" Normally Closed 3.5CV 20 PSI	V8043C1041 Brand Honeywell

Add to Cart

Add to Wishlist

The V8043A1011 is a 2-way normally closed 2-way motorized zone valve that operates at 24V and 50/60 Hz frequency. It has a 1/2" sweat connection size with a 3.5 Cv flow capacity and 20 psi maximum pressure. CE-marked, UL-listed, EAC and CSA-certified

The motorized zone valve is suitable for controlling the flow of hot or cold water and steam applications. The unit is constructed with a brass body, stainless steel stem, and a spring return actuator with an 18" lead length.

Check out the available replacement parts:

802360JA Motor
802360UA Motor 24V
802360LA Motor 120V
802360MA Motor 208V
802360NA Motor 240V
272742A Ball and O-Ring
272756A O-Ring (5 Per Pack)
40003916-021 Powerhead Assembly

The V8043A1011 is easy to install and mounted in any position. It features a manual opener in the event of power loss and returns to an automatic position when power is restored. The 40003918-006 powerhead assembly accessory is also available.

Electrical Connections	Two position
Flow Capacity	3.5 Cv (3 Kv)
Pipe Connection Size	1/2" Sweat
Maximum Ambient Temperature	125°F (50°C)
Approvals	CE-marked, UL-listed, EAC and CSA-certified
Voltage	24V
Maximum Closeoff Pressure	20 psi (138 kPa)
Frequency	50/60 Hz
Fluid Temperature Range	40 to 200°F (5 to 93°C)
Body Pattern	Two-way, Straight-through
