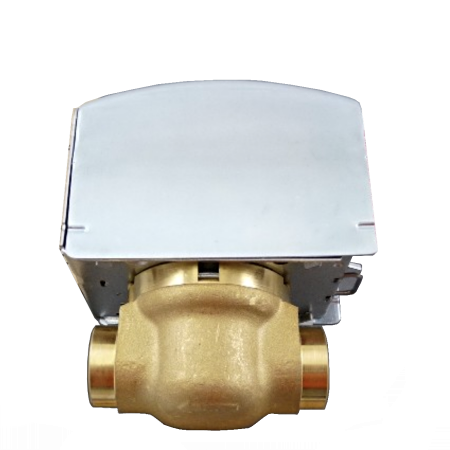

Honeywell V8043F5093 Motorized Zone Valve 24V 3/4" Normally Closed 8Cv 20 PSI

Name: Honeywell V8043F5093 Motorized Zone Valve 24V 3/4" Normally Closed 8Cv 20 PSI
Brand: Honeywell
SKU: V8043F5093
Price: 144.76 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V8043F5093 Motorized Zone Valve 24V 3/4" Normally Closed 8Cv 20 PSI

SKU: V8043F5093

UPC: 8526783358

Brand:

Rating:

Quantity	Price	Stock
25 Usually Ships 1-2 Weeks	$144.76 /ea	25

Buy in Bulk & Save

Quantity	Price
5+	$137.53 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell V8043 Quickfit 5000 Series Zone Valves

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications. QuickFit® actuator provides an easy snap on and off the connection to the valve assembly.

The Honeywell V8043F5093 is a 2-Way Normally Closed Quickfit Zone Valve with a pipe size of 3/4". The valve consists of a sweat connection type, hydronic control, spring return to close, brass body, stainless steel stem, brass seat, screwed terminal block, manual opener, and normally open SPST auxiliary switch.

Features:

All models may be installed without disassembling the valve.
Compact construction for easy installation.
Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
"Quick Fit" pushbutton powerhead makes it easy to remove for service.
Series 5000 replacement powerhead is backward compatible with series 1000 zone valves.
Innovative motor technology offers silent operation, water hammer resists and longer life.

Pipe Size	3/4"
Maximum Pressure	8 psi (55 kPa)
Capacity	8 Cv (6.9 Kv)
Voltage	24V
Connection Type	Sweat
Electrical Connections	Screw Terminal Block
End Switch	SPST
Body Pattern	Two-way, Straight-Through
De-engergized Position	Normally Closed
Body Material	Brass

Download Product Information:

Honeywell V8043 Quickfit 5000 Series Zone Valves Technical Datasheet
