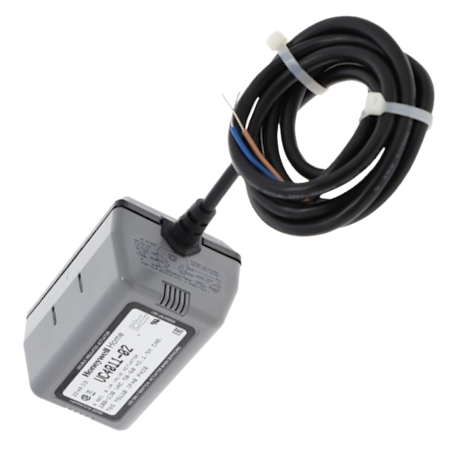

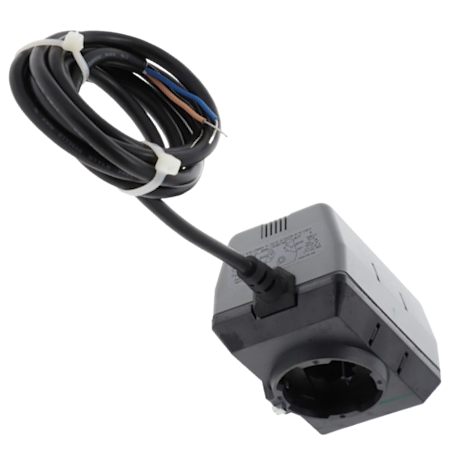

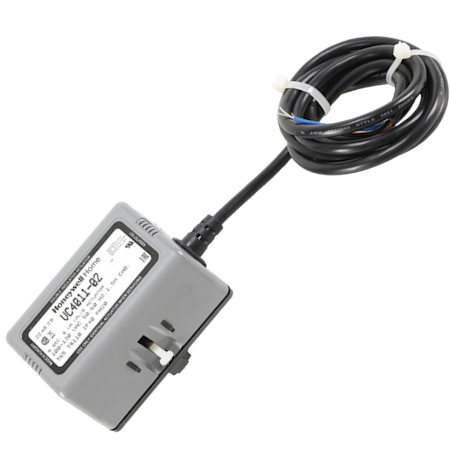

The Honeywell VC4011ZZ02 is a two-position actuator designed for precise control of central heating and cooling systems, fan coil units, radiators, and connectors. Operating at 120 V with a frequency of 50-60Hz, this actuator is compatible with both two-way and three-way VC Series valve bodies, ensuring versatile application in various HVAC setups.
Featuring minimal power consumption and quick-connect or one-meter cable electrical connections, the VC4011ZZ02 allows for efficient installation and operation. Its design facilitates easy replacement of moving parts without the need to drain the system, enhancing maintenance convenience. The actuator provides a nominal timing of 6 seconds for on/off models and ensures a close-off pressure of 60 psi when paired with VC Series valve bodies.
This actuator replaces the VC4011-02 model and is UL-recognized and CSA-certified, meeting stringent safety and performance standards. This replaces part number VC4011-02.
| Voltage | 120V |
|---|---|
| Frequency | 50/60 Hz |
| Housing Material | Plastic |
| Mounting | Direct Coupled |
| Operating Humidity | 5 to 95% RH, non-condensing |
| Power Consumption | 6 VA |
| Control Signal | SPST; Two position |
| Maximum Differential Pressure Ratings (Close-off) | 60 psid |
| Shaft Adapter Type | Self-Alignment |
| Approvals | UL-recognized and CSA-certified |
Download Product Information:
Honeywell VC4011ZZ02 Valve Actuator Installation Instructions
