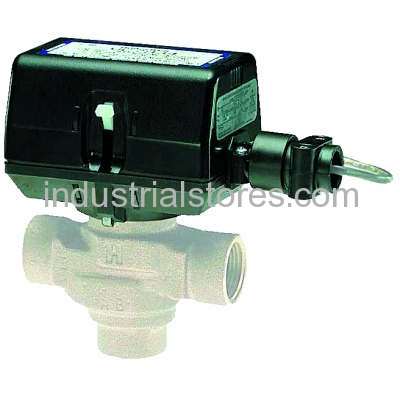

Overview Control central heating and cooling fan coil systems radiators and convectors. Depending on the model it can be controlled by a low voltage SPST or SPDT switch pulse-width modulated 24 Vac signal or floating input modulating controller. Features Use with two-way or three-way valves. Double insulated actuator. Five foot plenum-rated cable. Quick and easy replacement of moving parts. Actuator head installation does not require draining the system. Selectable/switchable electronic fail safe normally open or normally closed. Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction. All VC Series actuator-valve combinations provide 60 psi close-off. Product Specifications Application HVAC Dimensions (in.) 2.8 in. high x 3.7 in. wide x 2.7 in. deep Dimensions (mm) 70 mm high x 94 mm wide x 68 mm deep Includes Flexible conduit adapter Used With 3000 Series 2-way and 7000 Series VC valve bodies only Weight (lb) 0.84 lb Weight (kg) 0.38 kg Materials Plastic housing Mounting Direct Coupled Frequency 50 Hz 60 Hz Approvals Underwriters Laboratories Inc. Listed 94-5V Approvals Canadian Standards Association CSA Certified: LR1322-367 Electrical Connections Plenum-rated cable Operating Humidity Range (% RH) 5 to 95% RH non-condensing Supply Voltage 24 Vac Power Consumption Driving-- 6 VA Shipping and Storage Temperature Range (F) -40 F to +150 F Shipping and Storage Temperature Range (C) -40 C to +65 C Ambient Temperature Range (F) 32 F to 150 F Ambient Temperature Range (C) 0 C to 65 C Switch Ratings 2.2A (5 to 110 Vac)/1.0A (110 to 277 Vac) Inductive Min. DC switching capability: 5 mA @ 24 Vac. Environmental Electrical or Ingress Protection Rating Double Insulated IP40 Internal Auxiliary Switch 1 Fluid Temperature (C) 95 C Fluid Temperature (F) 203 F Actuator Type Valve Control Signal SP3T (tri-state) Floating 24 Vac Fail Safe Mode Stays in place Switches SPDT Stroke (in.) 0.4 in. Stroke (mm) 10 mm Cable Molded strain relief conduit clamp Timing Nominal Driving @ 60 Hz (sec)-- 120 sec Maximum Differential Pressure Ratings (Close-off) (psi) 60 psid Maximum Differential Pressure Ratings (Close-off) (kPa) 400 kPa Shaft Adapter Type Self-alignment Manual operation Lever Electrical Connections (in.) 5 ft. Electrical Connections (mm) 1.5 m
