Overview

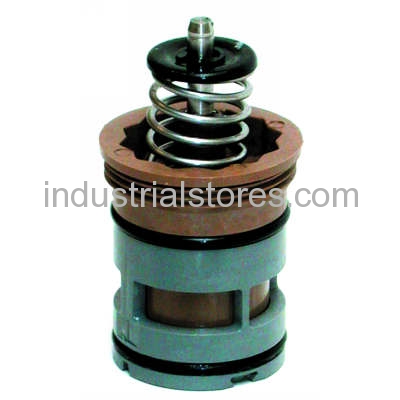

The cartridges used in VC-Series valves determine the Cv(kv) rating and flow of a valve body and can be replaced to match original factory specifications. 1000-series cartridges fit all 2-way VC bodies. 6000-series cartridges fit all 3-way VC bodies.
Features
Use VCZZ1XXX with two-way valves.
Use VCZZ6XXX with three-way valves.
Quick and easy replacement of moving parts.
Restores valve to factory-new conditions.
Using different cartridge changes Cv and flow characteristic of body.
Identical cartridge can have different Cv in bodies of different sizes.
Product Specifications
Dimensions (in.)
1 1/2 in. diameter x 2 9/16 in. high
Dimensions (mm)
37 mm diameter x 65 mm high
Includes
Two-way VC Valves
Comments
VC series Floating or Modulating actuator
Valve Type
Replacement cartridge for VC series
Controlled Fluid
Water w/max of 60% Glycol. Not for use with Steam
Materials (Stem)
Stainless Steel
Materials (Cartridge)
EPDM Ryton & Noryl plastic
Flow Characteristic
Equal Percentage
Stem Travel (in.)
0.4 in.
Stem Travel (mm)
10 mm
