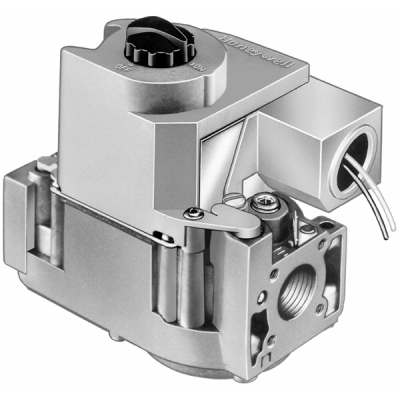

The VR4205 Direct Ignition, Dual Automatic Valve, Combination Gas Controls are used with direct ignition systems in gas-fired appliances. Controls include; safety shutoff, manual valve, two automatic operators, pressure regulator and conduit cover.

Features

• Used with 120 Vac direct ignition modules.
• VR4205 for use with 120 Vac heating appliances that burn natural or manufactured gas, or liquefied petroleum(LP) gas.
• Capacity rated at 150 cfh at 1 in. wc pressure drop (4.2 m3/h at 0.25 kPa).
• Solenoid operated first automatic valve opens on thermostat call for heat and closes when call for heat ends.
• Diaphragm-operated second automatic valve opens under control of the regulator and closes if gas or power supply is interrupted.
• Two-position gas control knob has ON and OFF positions.
• All adjustments and wiring connections accessible from top of the control.
• Compact size.
• Straight-through body pattern; right angle adapters available for inlet and outlet.
• 1/2 in. inlet and 1 /2 in. outlet; adapters available for 3/8 or 3/4 in.
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
