Overview

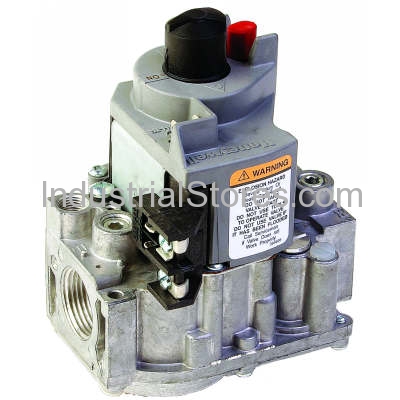

Gas valvesl for use in 24 Vac gas-fired standing pilot appliances with capacities from 30 to 300 cfh.
Features
Gas valves include safety shutoff manual valve two automatic operators pressure regulator and pilot adjustment.
Compact size.
Provide two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator closes if gas or power supply is interrupted.
Meets codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves not for step opening gas valves.
All adjustments wiring connections and pilot outlet are accessible from top of control.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector.
LITE-RITE (OFF-PILOT-ON) lighting sequence.
Product Specifications
Application Single Stage Standing Pilot applications Dimensions (in.) 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep Dimensions (mm) 135 mm high x 104 mm wide x 69 mm deep Includes Q340 thermocouple Two 3/4 to 1/2 reducer bushings One natural to LP conversion kit Item Type Product Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob including vertically. Frequency 50 Hz 60 Hz Approvals Underwriters Laboratories Inc. UL Component Recognized MCCZ2.MH5323 Approvals Canadian Standards Association 112395 Tradeline Value Universal Electrical Connections 1/4 in. quick-connect male terminals Voltage 24 Vac Operating Temperature Range (F) -40 F to +175 F Operating Temperature Range (C) -40 C to +79 C Body Pattern Straight-through Opening Characteristics Standard Pressure Ratings (psi) 1/2 psi Pressure Ratings (kPa) 3.5 kPa Inlet/Outlet Size (in.) 3/4 in. x 3/4 in. Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing Pressure Tapping 1/8 in. NPT with plug Type of Fuel Natural or LP Capacity (kBtuh) At 1 in. wc p.d.-- 200 000 BTUh: 30 000 BTUh minimum 300 000 BTUh maximum Approvals Australian Gas Association 4717 Pressure Regulator Setpoint (in. wc) 3.5 in. wc Pressure Regulator Setpoint (kPa) 0.87 kPa Ignition Type Standing Pilot Anticipator Setting 0.7 A
