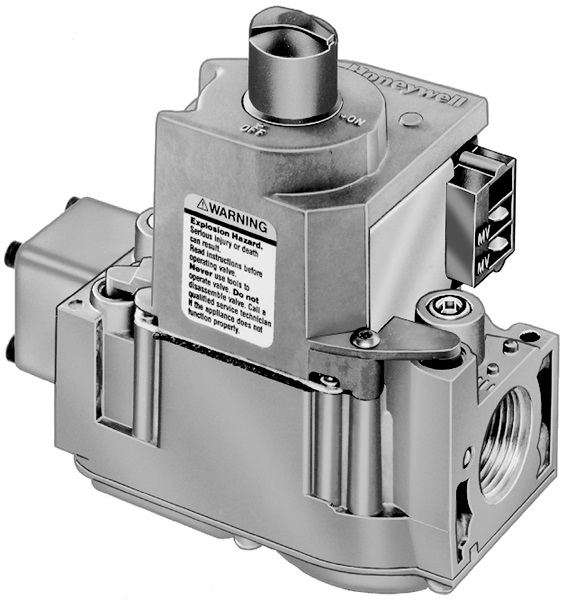

The VR8305 Direct Ignition Dual Automatic Valve Combination Gas Controls are for use with direct ignition systems in gas-fired appliances. The controls include a safety shut-off a manual valve two automatic operators and a pressure regulator. Combination gas control for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.
The VR8305M3506 is a single stage, direct igntion valve approximately 5-3/8" x 4-1/16" x 2-11/16" and includes a 3/4" straight through flange, a Natural to LP coversion kit, and a 3/4" x 1/2" reducer bushing. This valve operates at 24V @ 60Hz and comes with 1/4" quick-connect male terminals. The operating temperature range is -40F to 175F (-40C to 79C) and the straight though body has a standard opening. The pressure rating is 1/2 PSI (3.5 kPa) and the pressure tapping is 1/8" NPT with plug. The standard pressure regulator has a setpoint of 3.5" W.C. (0.87 kPa).
Features
# of Stages | 1-Stage |
---|---|
Mounting | 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically. |
Frequency | 60Hz |
Approvals | UL Component Recognized MCCZ2.MH5323; CSA International: 112395 |
Inlet/Outlet | 1/2" x 3/4" |
