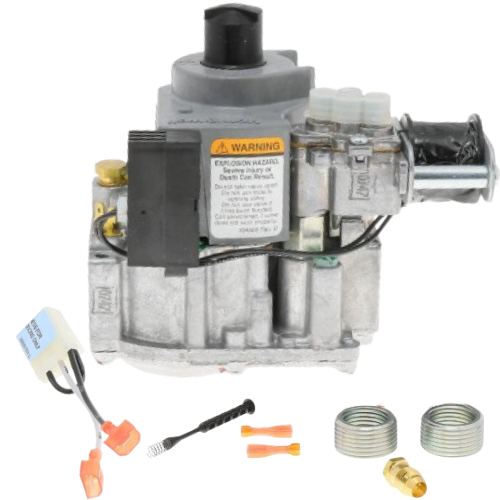

Overview These valves offers wide-capacity control for almost any IP HSI or DSI gas-fired appliances.   Product Specifications Application Single Stage Dimensions (in.) 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep Dimensions (mm) 135 mm high x 104 mm wide x 69 mm deep Includes Two 3/4 x 1/2 in. reducer bushings Natural to LP Conversion Kit Item Type Product Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob including vertically. Frequency 60 Hz Approvals Underwriters Laboratories Inc. UL Component Recognized. Approvals Canadian Standards Association 112395 Tradeline Value Super Tradeline Electrical Connections 1/4 in. quick-connect male terminals Voltage 24 Vac Operating Temperature Range (F) -40 F to +175 F Operating Temperature Range (C) -40 C to +79 C Approvals Canadian Gas Association CGA Design Certified: File No. L2025007. Body Pattern Straight-through Opening Characteristics Standard Pressure Ratings (psi) 1/2 psi Pressure Ratings (kPa) 3.5 kPa Inlet/Outlet Size (in.) 3/4 in. x 3/4 in. Pressure Tapping 1/8 in. NPT with plug Approvals American Gas Association AGA Design Certificate: L2025007 Type of Fuel Natural Capacity (kBtuh) At 1 in. wc p.d.-- 300 000 BTUh: 30 000 BTUh minimum Pressure Regulator Setpoint (in. wc) 1.7 in. wc low 3.5 in. wc high Pressure Regulator Setpoint (kPa) 0.48 kPa low 0.87 kPa high Ignition Type Direct Ignition Intermittent Pilot
