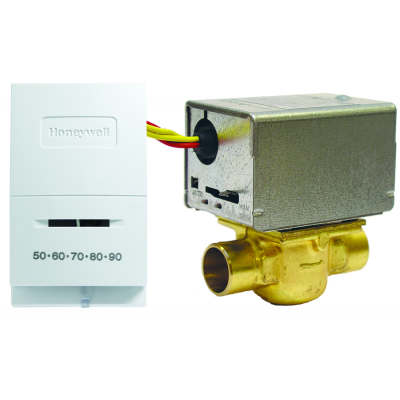

Honeywell Y496A1090 Hydronic Zone Builder Pack with Y-Pack Premier White Thermostat & Zone Valve

Honeywell Y496A1090 Hydronic Zone Builder Pack with Y-Pack Premier White Thermostat & Zone Valve
Images for general purposes only. Actual may be different than depicted.
Honeywell Y496A1090 Hydronic Zone Builder Pack with Y-Pack Premier White Thermostat & Zone Valve

Honeywell Y496A1090 Hydronic Zone Builder Pack with Y-Pack Premier White Thermostat & Zone Valve

SKU: Y496A1090
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$153.77     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
Y496A1090

Contain devices necessary for temperature control of a single zone in a hydronic heating system.

Features



  • Include thermostat with special heat anticipator designed for best performance when used with the V8043 Zone Valve.
  • Require 24 V power source.
  • Custom packed with 10 Valves and 10 thermostats per carton.



Product Specifications

Application
Single Stage Heating Only
Dimensions (in.)
Thermostat: 4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep; Valve: 4 in. high, 3-1/2 in. wide, 2 3/8 in. deep
Dimensions (mm)
Thermostat: 121 mm high, 73 mm wide, 35 mm deep; Valve: 101 mm high x 90 mm wide x 60 mm deep
Temperature Range (F)
55 to 95 F
Temperature Range (C)
13 to 35 C
Comments
See V8043, T822K for more details
Mounting
Thermostat --Vertical
Frequency
Valve--50 Hz or 60 Hz; Thermostat--50 Hz or 60 Hz
Approvals, Underwriters Laboratories Inc.
UL Listed: Models V8043A,B,E,J & V8044A,B,E; UL Component Recognized: V8043F
Tradeline Value
Tradeline
Electrical Connections
Valve--18 in. leads; Thermostat--Screw Terminals
Voltage
Valve--24 Vac; Thermostat-- 24V
Color
Thermostat --Premier White®
Pipe Connection
Sweat
Auxiliary Switch Ratings
4.4 A running @ 120 V; 50 VA pilot duty @ 24 V
Body Pattern
Two-way
Pipe Size (inch)
3/4 in.
Maximum Differential Pressure Ratings (Close-off) (psi)
20 psi
Maximum Differential Pressure Ratings (Close-off) (kPa)
138 kPa
Capacity (Cv)
3.5 Cv
Capacity (Kv)
3 Kv
Valve Action
Spring return to close
Y-Pack Includes
V8043E1012, T822K1018
