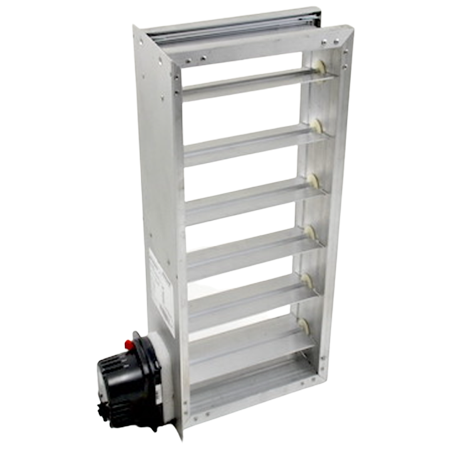

Honeywell ZD10X20TZ Parallel Blade Damper 2-Position Spring Return 24V (10" Length x 20" Height)

Honeywell ZD10X20TZ Parallel Blade Damper 2-Position Spring Return 24V (10" Length x 20" Height)
Images for general purposes only. Actual may be different than depicted.
Honeywell ZD10X20TZ Parallel Blade Damper 2-Position Spring Return 24V (10" Length x 20" Height)

Honeywell ZD10X20TZ Parallel Blade Damper 2-Position Spring Return 24V (10" Length x 20" Height)

SKU: ZD10X20TZ
Rating:
Quantity Price Stock
6
Usually Ships 1 - 2 Weeks
$252.32     /ea
6

Buy in Bulk & Save

Quantity Price
3+ $240.02 /ea

The ZD10X20TZ found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Zone First ZDB-10X20 Zone Damper Parallel 2-Position Spring Return 24V [10" H x 20" W] ZDB-10X20

Brand Zonefirst
Zone First ZDB-10X20 Zone Damper Parallel 2-Position Spring Return 24V [10" H x 20" W]
Honeywell ZD-10X20 Parallel Blade Damper 2-Position Spring Return 24V (10" Length x 20" Height) ZD-10X20

Brand Honeywell
Honeywell ZD-10X20 Parallel Blade Damper 2-Position Spring Return 24V (10" Length x 20" Height)
0
$0.00
0
$0.00
0
ZD10X20TZ
The ZD10X20TZ is a parallel blade damper that has a spring return damper motor with an electrical rating of 24V, 8VA, and 60 Hz.  It is designed to operate up to 1" W.C. and features an adjustable closed position range stop.

The parallel blade damper is suitable for use in controlling circulating air in HVAC systems such as Truezone and different electronic zoning applications.  The unit is constructed with a parallel blade to reduce leakage and has a fail-safe function during normally open operation in the event of a malfunction.

The ZD10X20TZ is easy to install with 2-wires and can be mounted in any position.  The M847D-ZONE replacement motor is also available.
Motor Ambient Rating 40° to 140°F (5° to 60°C).
Motor Nominal Angular Rotation 90°
Frequency 60 Hz
Power 8VA
Size 10" Length x 20" Height
Voltage 24V
Motor Ambient Temperature Rating 40 to 140F (5 to 60C)
Maximum Static Pressure 1" W.C.
Motor Shaft Rotation Clockwise
Motor Mounting Position Multi-poise
