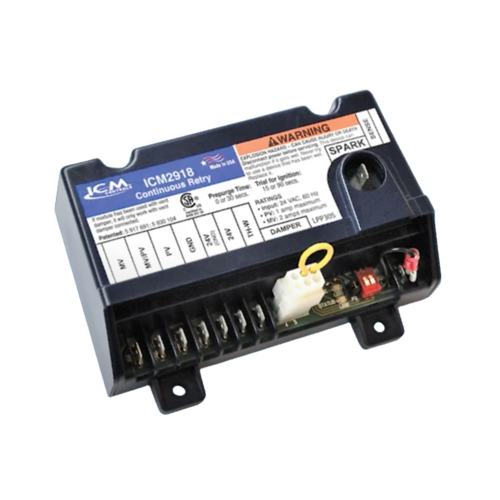

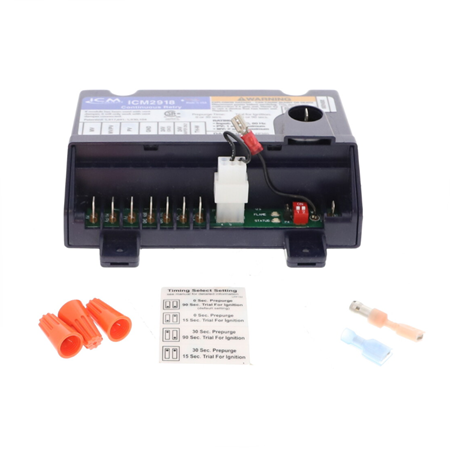

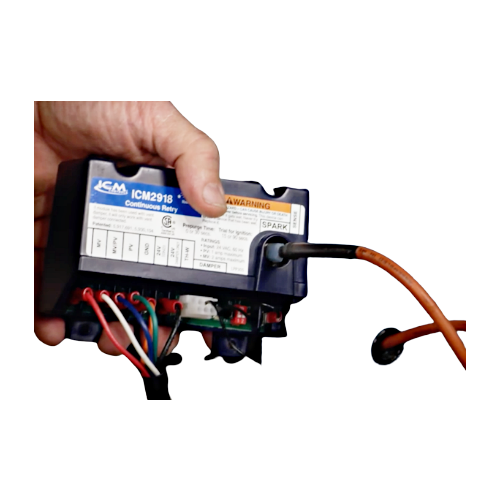

ICM Controls ICM2918 IPI Gas Ignition Control

ICM Controls ICM2918 IPI Gas Ignition Control
Images for general purposes only. Actual may be different than depicted.
ICM Controls ICM2918 IPI Gas Ignition Control ICM Controls ICM2918 IPI Gas Ignition Control Module ICM Controls ICM2918 Universal Intermittent Gas Ignition Control Module

ICM Controls ICM2918 IPI Gas Ignition Control

SKU: ICM2918
Rating:
Quantity Price Stock
Usually Ships 2 - 5 Days
Usually Ships 2 - 5 Days
$163.12     /ea
Usually Ships 2 - 5 Days

The ICM2918 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
ICM Controls ICM290A IPI Gas Ignition Control ICM290A

Brand ICM Controls
ICM Controls ICM290A IPI Gas Ignition Control
0
$0.00
0
$0.00
0
ICM2918
The ICM2918 is a gas ignition control module with an ignition trial settable in 15 or 90-seconds.  The same with the pre-purge time it can be set to either 0 or 30-seconds.

This has a power voltage of 18-30 VAC at 50/60 Hz.  The module features LED indicator lights for easy monitoring of gas-fired heating appliances.  A yellow light means flame presence and flame strength.  While a green light indicates the system status and error codes.

The ICM2918 is applicable to both natural gas and LP gas systems.  The module can still work with or without a damper connection.  In addition, this is known as Universal Intermittent Pilot Gas Ignition Control Module whereas it replaces a wide range of IPI modules from known brands like Honeywell, Robertshaw, Camstat, Fenwal, UTEC/HSC, White-Rodgers, and Johnson Controls.

The unit directly replaces ICM290A and is a cost-effective replacement for Honeywell S8610U3009. CSA Approved.





Flame Current Typical
Relative Humidity 5% - 95% (non-condensing) at +55°C
Operating Temperature -40°F to 165°F (-40°C to 74°C)
Control Voltage Line 24VAC (18-30 VAC) at 50/60 Hz
Trial for Ignition 15 or 90 seconds
Pre-purge Time 0 or 30 seconds
Anticipator Setting 0.3 A plus valve load @ 24 VAC
Flame Failure Response Time Maximum of 2 seconds
Approval CSA
