ICM Controls UMSR-50 Universal Motor Starting Relay 110-270 VAC

ICM Controls UMSR-50 Universal Motor Starting Relay 110-270 VAC
Images for general purposes only. Actual may be different than depicted.

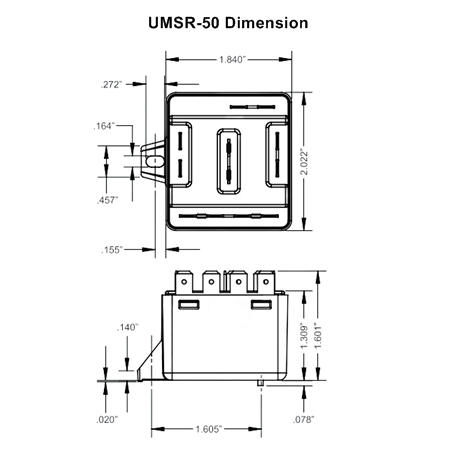

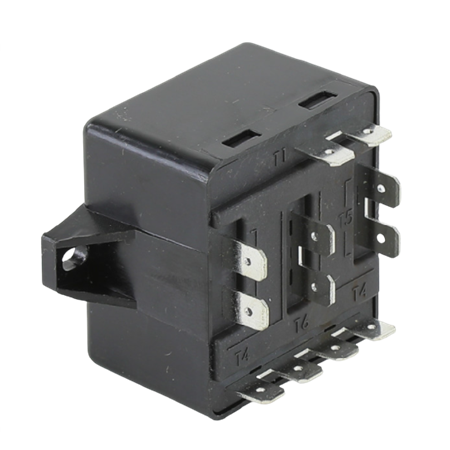

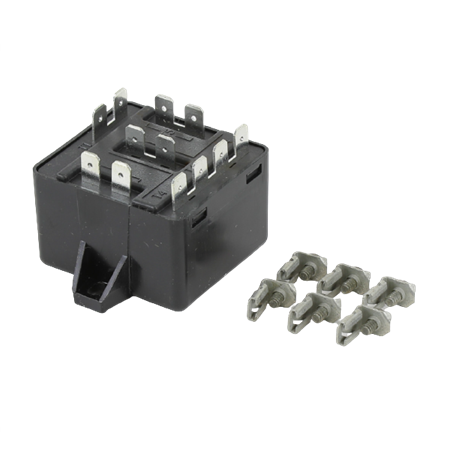

ICM Controls UMSR-50 Universal Motor Starting Relay 110-270 VAC ICM Controls UMSR-50B-LF Universal Motor Starting Relay Single Phase 5VA Max ICM Controls UMSR-50B-LF Single Phase Universal Motor Starting Relay Non-Positional ICM Controls UMSR-50 Universal Motor Starting Relay Dimension

ICM Controls UMSR-50 Universal Motor Starting Relay 110-270 VAC

SKU: UMSR-50B-LF
Rating: (1)
Quantity Price Stock
13
Usually Ships 1 - 2 Weeks
$45.84     /ea
13
0
$0.00
0
$0.00
0
UMSR-50B-LF
The ICM Controls UMSR-50 is a Universal Motor Starting Relay that has an input voltage rating of 110-270 VAC.  This starting relay is ideal for single phase motor with up to a 10 HP power rating.  Applicable to air conditioners, heat pumps, and commercial refrigeration.

The UMSR-50 is a good replacement for all standard potential relays with no user adjustment required and a non-positional operation.  Installation of the relay is fast and easy with its 0.250" quick connect termination.  The relay also includes patented differential voltage sensing.

The UMSR is UL and CSA approved.
Insulation Class B (130°C); Conforms to IEC 1000- standards(6kV impulse / 6kV contact)
Operating Position Non-positional
Consumption 5VA maximum
Voltage Rating 110-270 VAC single phase
Contact Rating 50A (break only), 400 VAC cos Ø = 0.7 to 0.8
Safety Timeout <2 seconds
