Johnson Controls MP8000-6002 Mounting Kit for Pneumatic Valve Actuator Positioner V-9502-95 with Hardware

Johnson Controls MP8000-6002 Mounting Kit for Pneumatic Valve Actuator Positioner V-9502-95 with Hardware
Images for general purposes only. Actual may be different than depicted.

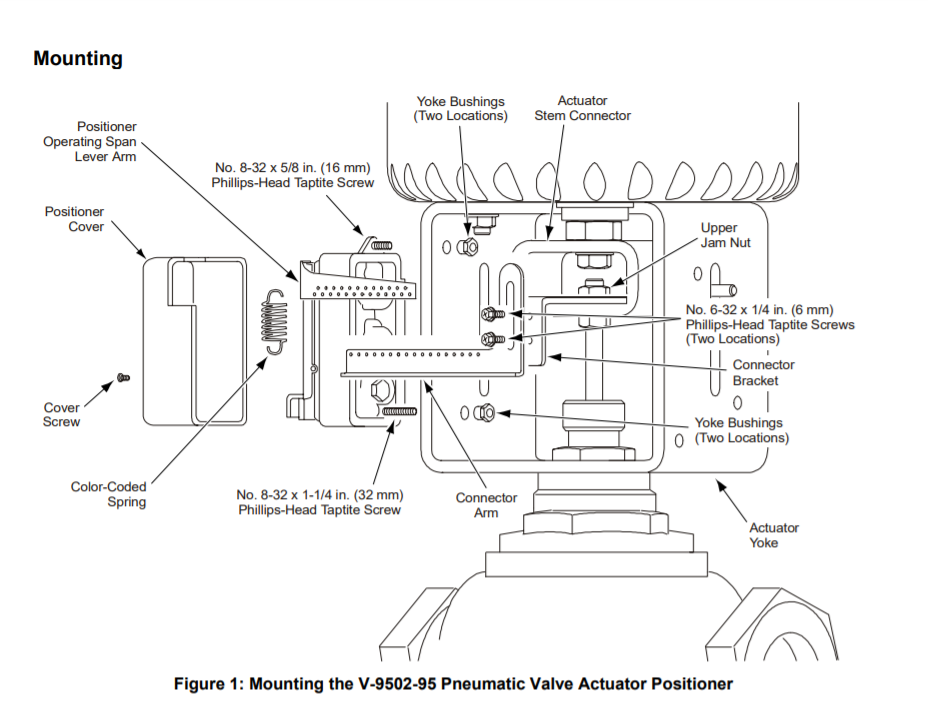

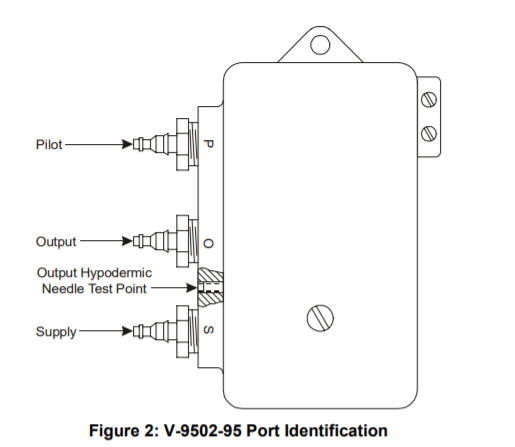

Johnson Controls MP8000-6002 Mounting Kit for Pneumatic Valve Actuator Positioner V-9502-95 with Hardware Mounting the V-9502-95 Pneumatic Valve Positioner Port Identification

Johnson Controls MP8000-6002 Mounting Kit for Pneumatic Valve Actuator Positioner V-9502-95 with Hardware

SKU: MP8000-6002
Rating:
Quantity Price Stock
6
Usually Ships 1-2 Weeks
$190.02     /ea
6
0
$0.00
0
$0.00
0
MP8000-6002
 Johnson Controls Actuator Mounting Kit

The MP8000-6002 is a mounting kit for Johnson Controls Pneumatic Valve actuator positioner.

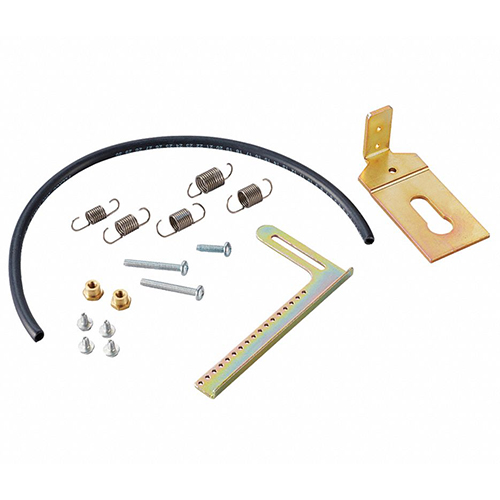

The kit includes:
  • 2 Yoke bushings
  • 1 Connector bracket
  • 1 Connector arm
  • 1 Yellow spring
  • 1 Blue spring
  • 1 White spring
  • 1 Gray spring
  • 1 Green spring
  • 1 Red spring
  • 1 Phillips-Head, Taptite Screw, No. 8-32 x 1-1/4 in. (32 mm) Long
  • 1 Phillips-Head, Taptite Screw, No. 8-32 x 5/8 in. (16 mm) Long
  • 2 Phillips-Head, Taptite Screws, No. 6-32 x 1/4 in. (6 mm) Long
  • 1 12 in. (305 mm) Length of Black Plastic Tubing
