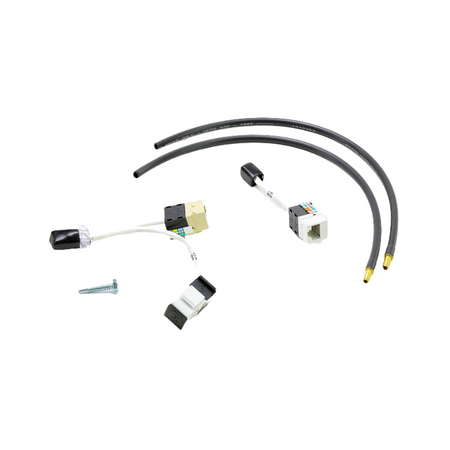

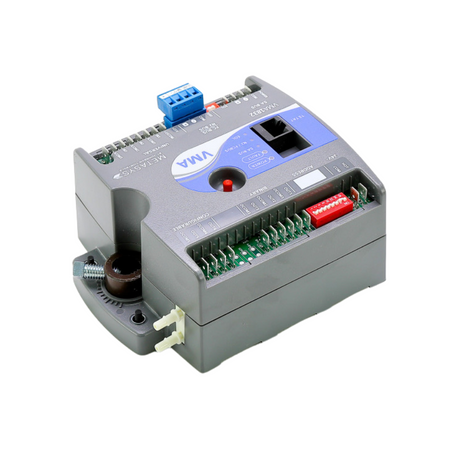

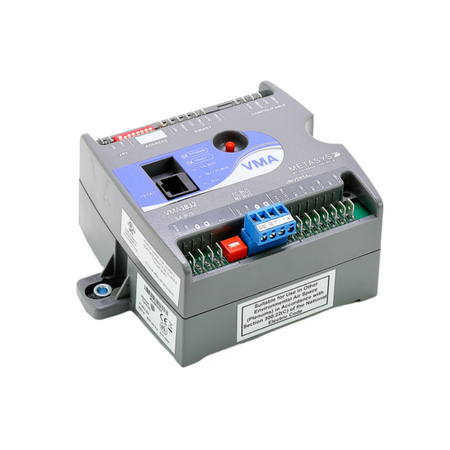

The Johnson Controls MS-VMA1832-0 is VAV modular controller that operates at 24 VAC. This device includes cable adapters used when replacing VMA14xx series controllers.
Power Supply:
This VAV modular controller features a 32-bit microprocessor, integral damper actuator, and digital DPT. This adapts NS series network sensors for zone and discharges air temperature sensing.
The MS-VMA1832-0 is a replacement for VMA1415, VMA1410, or VMA1420 controller. Suitable for use in other environmental air space (plenums) following Section 300.22(C) of the National Electric Code.
| Voltage | 24 VAC |
|---|---|
| Microprocessor | 32-bit |
| Inputs/Outputs, SA Bus, & Supply Power | 6.3 mm (1/4 in.) Spade Lugs |
| N2/FC Bus | Pluggable Screw Terminal Block |
| Accuracy | ±0.75% Full Span Maximum2 (±0.0225 in. W.C.) |
| TSTAT Modular Port | RJ-45 8-Pin Modular Jack |
| Pressure Range | -1.5 in. to 1.5 in. W.C. |
