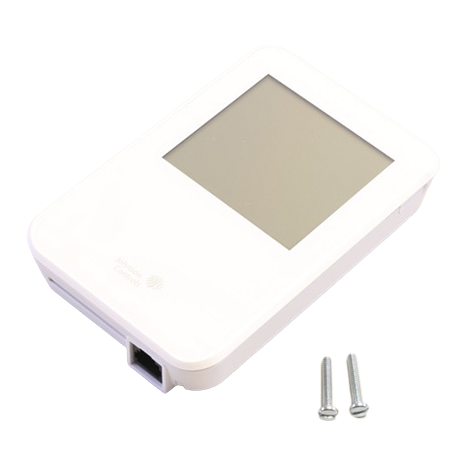

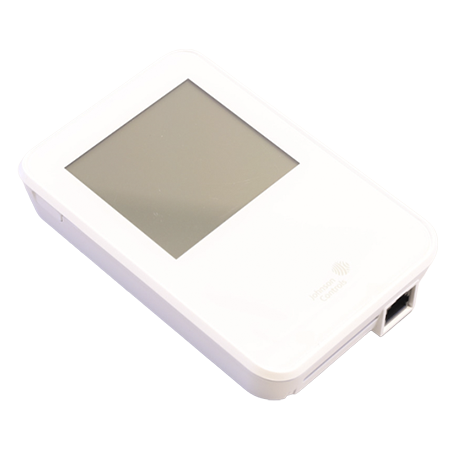

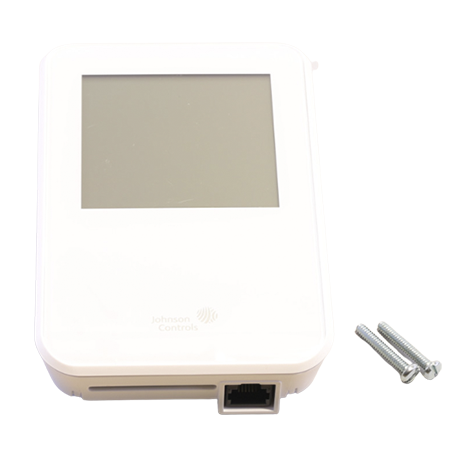

Johnson Controls NSB8BTN240-0 Temperature White Sensor w/ Display

Johnson Controls NSB8BTN240-0 Temperature White Sensor w/ Display
Images for general purposes only. Actual may be different than depicted.
Johnson Controls NSB8BTN240-0 Temperature White Sensor w/ Display Johnson Controls NSB8BTN240-0 Temperature White Sensor with Display Johnson Controls NSB8BTN240-0 Temperature White Sensor with Screen Lockout

Johnson Controls NSB8BTN240-0 Temperature White Sensor w/ Display

SKU: NSB8BTN240-0
Rating:
Quantity Price Stock
216
Usually Ships 1 - 2 Weeks
$155.30     /ea
216
Add to Cart
Add to Wishlist

The NSB8BTN240-0 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Johnson Controls NS-ATC7002-0 Fan Control Display NS-ATC7002-0
Brand Johnson Controls		 Johnson Controls NS-ATC7002-0 Fan Control Display
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
NSB8BTN240-0
The NSB8BTN240-0 is a white temperature sensor that features a large easy-to-read fixed segment display.  It operates at 9.8 VDC to 16.5 VDC with a 15 VDC nominal voltage.  CE-marked, RoHS-compliant, and UL-listed.

The temperature sensor provides visuals for RH, CO2, and control for zone temperature & fan speed.  It can also be configured to display between degrees Fahrenheit (°F) and degrees Celcius (°C).

Check out the suitable applications:

  • Metasys System Field Equipment Controller (FECs)
  • Metasys Network and Control Engines (NCEs)
  • Advance Application Field Equipment Controler (FACs)
  • Metasys VAV Box Equipment Controllers (CVM)
  • General Purpose Application Controllers (CGM)
  • Input/Output Modules (IOMs)
  • VAV Modular Assembly (VMA16) Controllers
  • Facility Explorer™ FX-PC Series Programmable Controllers (FX-PCGs, FX-PCVs, and FX-PCXs)
  • Verasys and Johnson Controls® Smart Equipment
The NSB8BTN240-0 is easy to install and prevents tampering with a screen lockout function.  The NS-WALLPLATE-0 wall plate accessory is also available.
Temperature Resolution ±0.5°F/±0.5°C
Approvals CE-marked, RoHS-compliant, and UL-listed
Ambient Operating Temperature 32°F to 122°F (0°C to 50°C)
Supply Voltage 9.8 VDC to 16.5 VDC, 15VDC Nominal
Temperature Measurement Range 32 to 104°F (0 to 40°C)
CO2 Measurement Range 0 ppm to 2000 ppm
Current Consumption 10 mA
Terminations Modular Jack and Screw Terminal Block
Humidity Sensor Type Thin Film Capacitive Sensor
Temperature Sensor Type Digital Temperature Sensor
