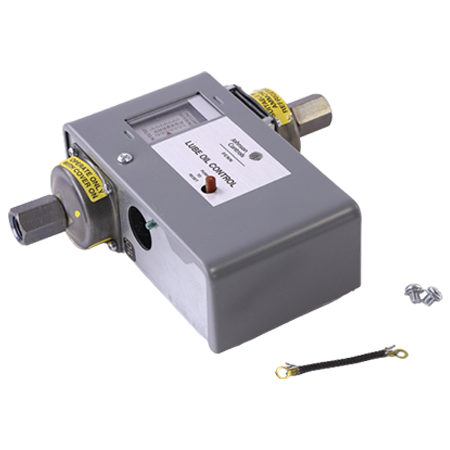

Johnson Controls P28DN-4 8/70# 30Sec Mr W/Alarm Lubeoil

Johnson Controls P28DN-4 8/70# 30Sec Mr W/Alarm Lubeoil
Images for general purposes only. Actual may be different than depicted.

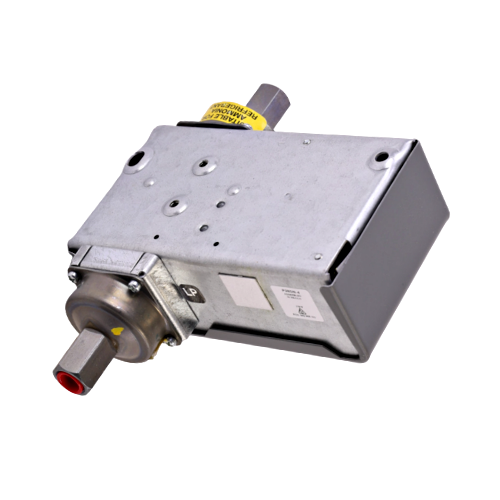

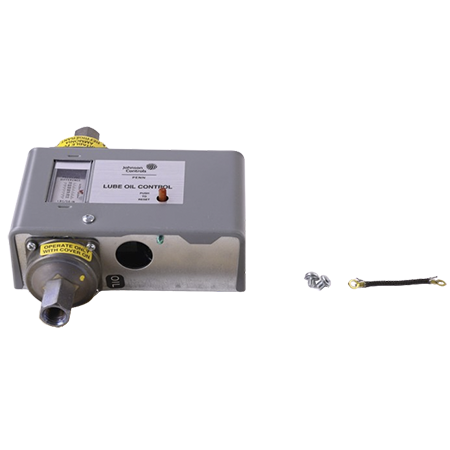

Johnson Controls P28DN-4 8/70# 30Sec Mr W/Alarm Lubeoil Johnson Controls P28DN-4 Lube Oil Control with Built-in Time Delay Relay Johnson Controls P28DN-4 Lube Oil Control 30-Seconds Time Delay

Johnson Controls P28DN-4 8/70# 30Sec Mr W/Alarm Lubeoil

SKU: P28DN-4
Rating:
Quantity Price Stock
21
Usually Ships 1 - 2 Weeks
$619.20     /ea
21

The P28DN-4 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Johnson Controls P28AN-1 90Secm/R 8/70# Ammonia Control. P28AN-1

Brand Johnson Controls
Johnson Controls P28AN-1 90Secm/R 8/70# Ammonia Control.
Johnson Controls P28AN-15 8/70#M/R 30Sec.Ammonia #Switch P28AN-15

Brand Johnson Controls
Johnson Controls P28AN-15 8/70#M/R 30Sec.Ammonia #Switch
Johnson Controls P28AN-6 Lube Oil Control30SecM/R,Ammonia P28AN-6

Brand Johnson Controls
Johnson Controls P28AN-6 Lube Oil Control30SecM/R,Ammonia
0
$0.00
0
$0.00
0
P28DN-4
Johnson Controls P28DN-4 is a lube oil control with alarm terminals.  The control has a 30-second time delay, an operating voltage of 120/240VAC, and 8 to 70 PSIG working pressure.  Also, this can be manually reset.

The P28 and P128 Series Lube Oil Controls provide dependable and economical oil pressure cut-out for pressure-lubricated refrigeration compressors.  The field-adjustable pressure differential of these controls provides compressor operation according to the manufacturer’s specifications. The P28 and P128 controls operate by measuring the net lube oil pressure and de-energizing the compressor if the pressure falls below the differential setpoint.

Manual or automatic reset models are available with factory set and sealed time delays of 30, 45, 60, 90, or 120 seconds (all time delays may not be available on all models).  The P128 is the same control as the P28 but with 1/4" male flare pressure connections.
Voltage 120/240V
Adjustable Cut-out Pressure Difference 8 to 70 psi (55 to 483 kPa)
Time Delay 30-seconds
Reset Type Manual Reset
Power Consumption 15/30 VA
Wattage 10W
Approvals UL and CSA certified
Ambient Operating Conditions 32 to 104°F (0 to 40°C)
Maximum Working Pressure 250 psig (1724 kPa)
Maximum Overpressure 325 psi (2240 kPa)
