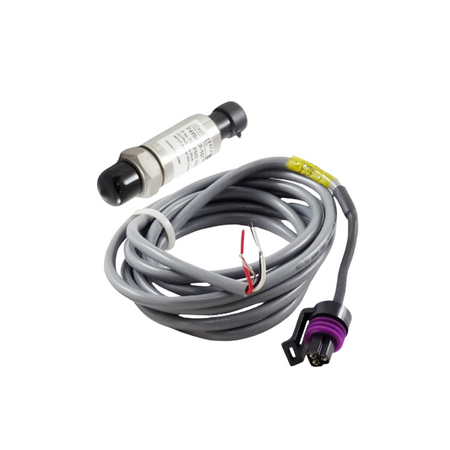

The Johnson Controls P499ACP-101K is a compact, economical, rugged, direct-mount pressure transducer kit with a 6 1/2-ft (2.0 m) wire harness and literature. This device has a 0 to 100 psi pressure range and accepts 4 to mA output signals.
The pressure transducer operates with a corrosive or non-corrosive pressure medium with no O-rings, organic materials, or welds exposed for a leak-proof system. It features a slender body design, environmentally protected electronics, reliable, repeatable performance, and long operating life.
The P499ACP-101K is compatible with 17-4PH stainless steel including water, glycol, carbon dioxide, condensate, and refrigerants (ammonia, fluids, and gases). Suitable for commercial applications such as pumps, chillers, compressors, fan speed controls, industrial process controls, HVAC/R and agricultural applications.
| Direct-Mount Pressure Connection | 1/4" SAE Flare Internal Thread with Depressor (Style 47) |
|---|---|
| Pressure Port Material | 17-4PH Stainless Steel |
| Pressure Range | 0 to 100 PSI |
| Output Signal | 4 to 20 mA |
| Packard Connector | 40% Glass-Filled Polyetherimide (PEI) |
